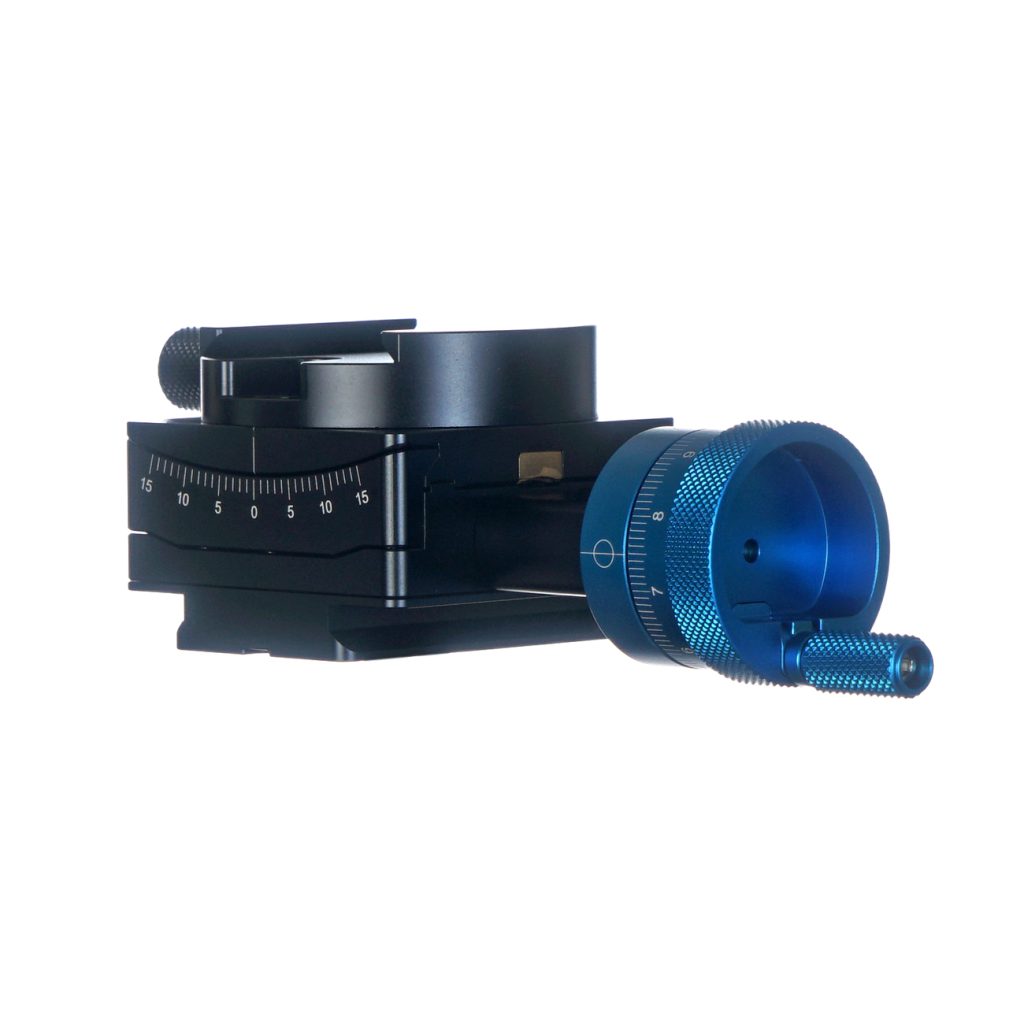

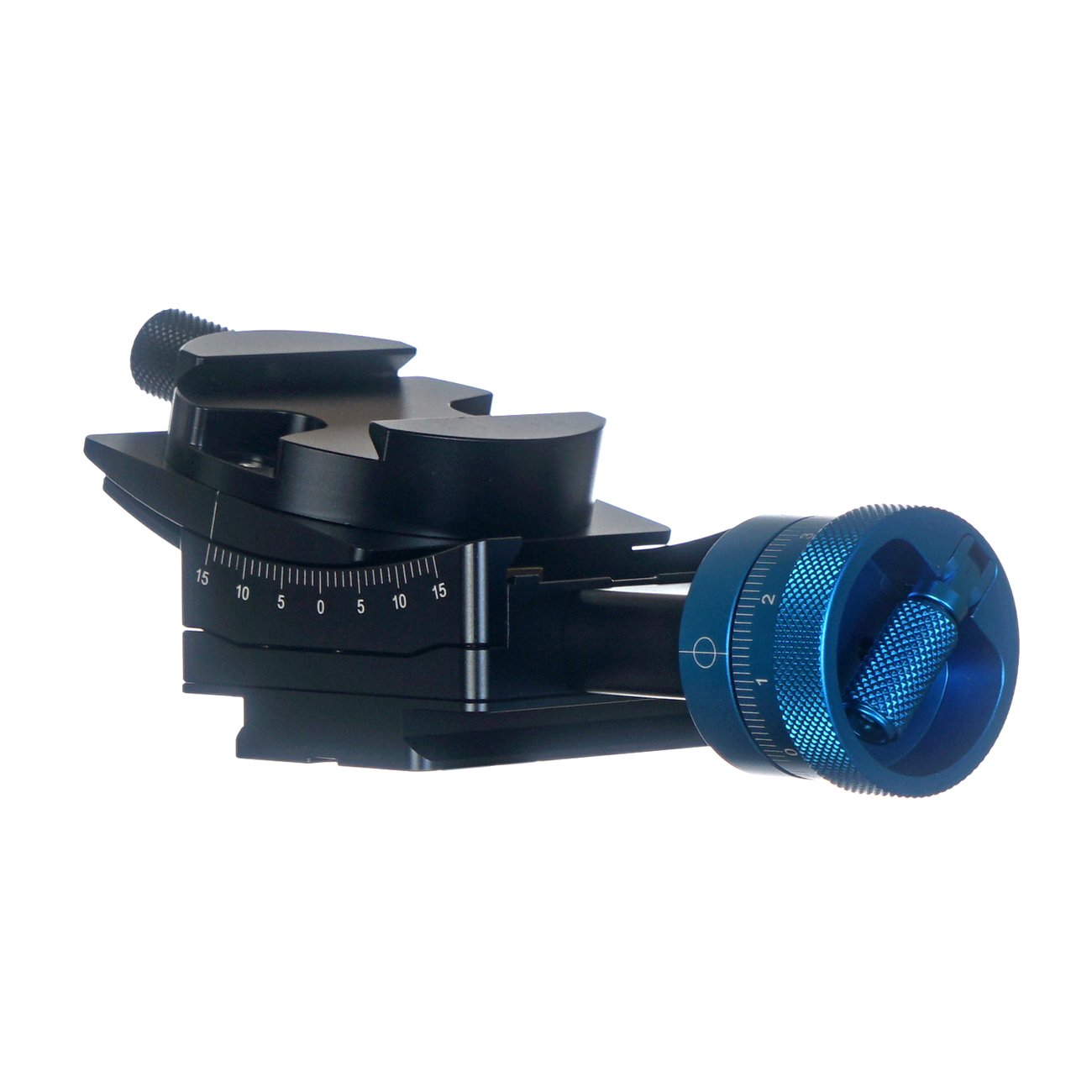

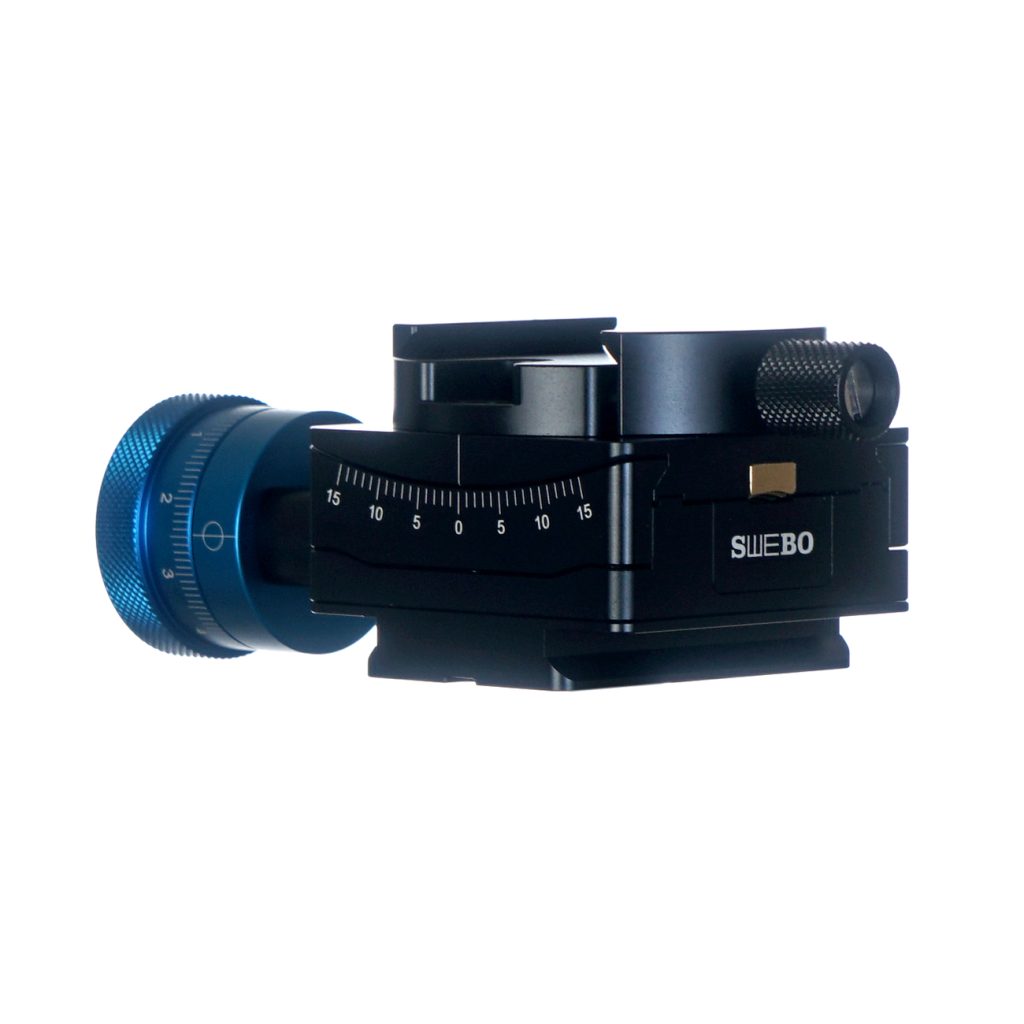

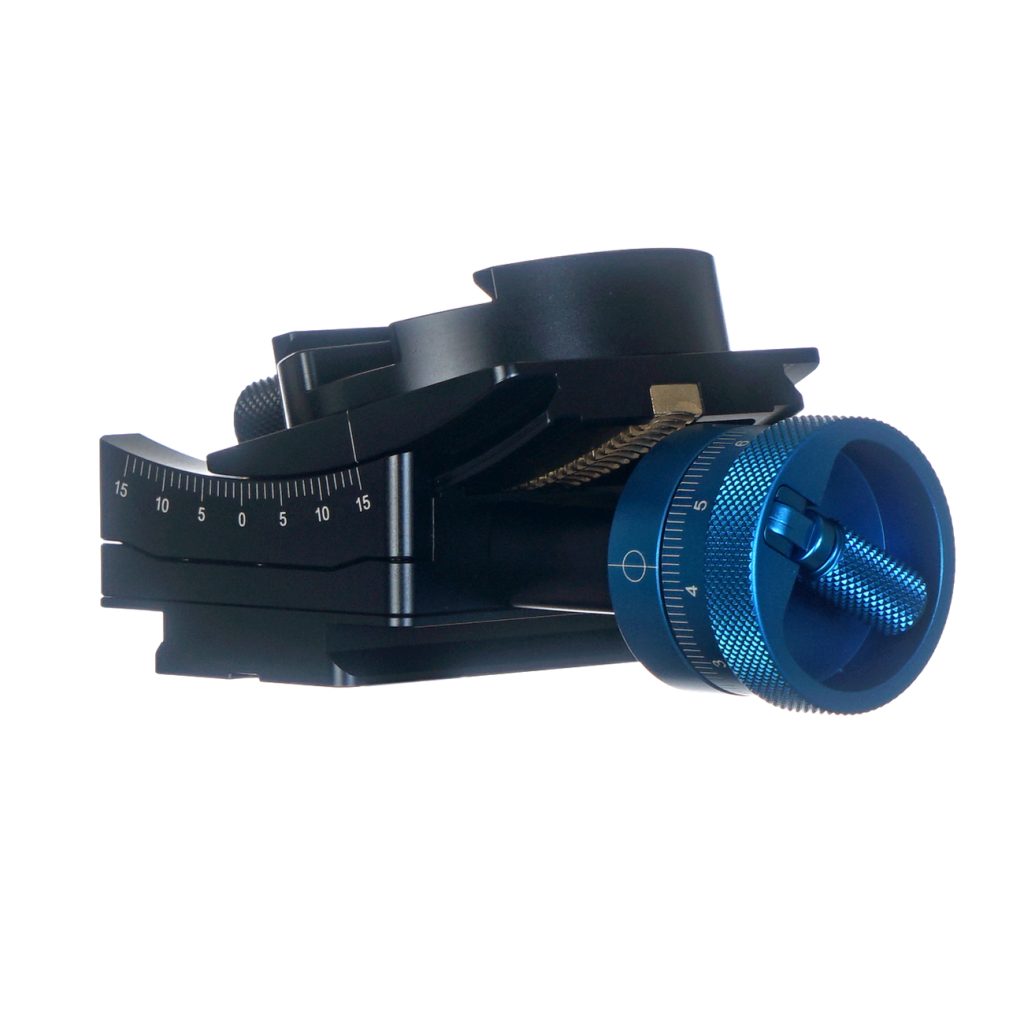

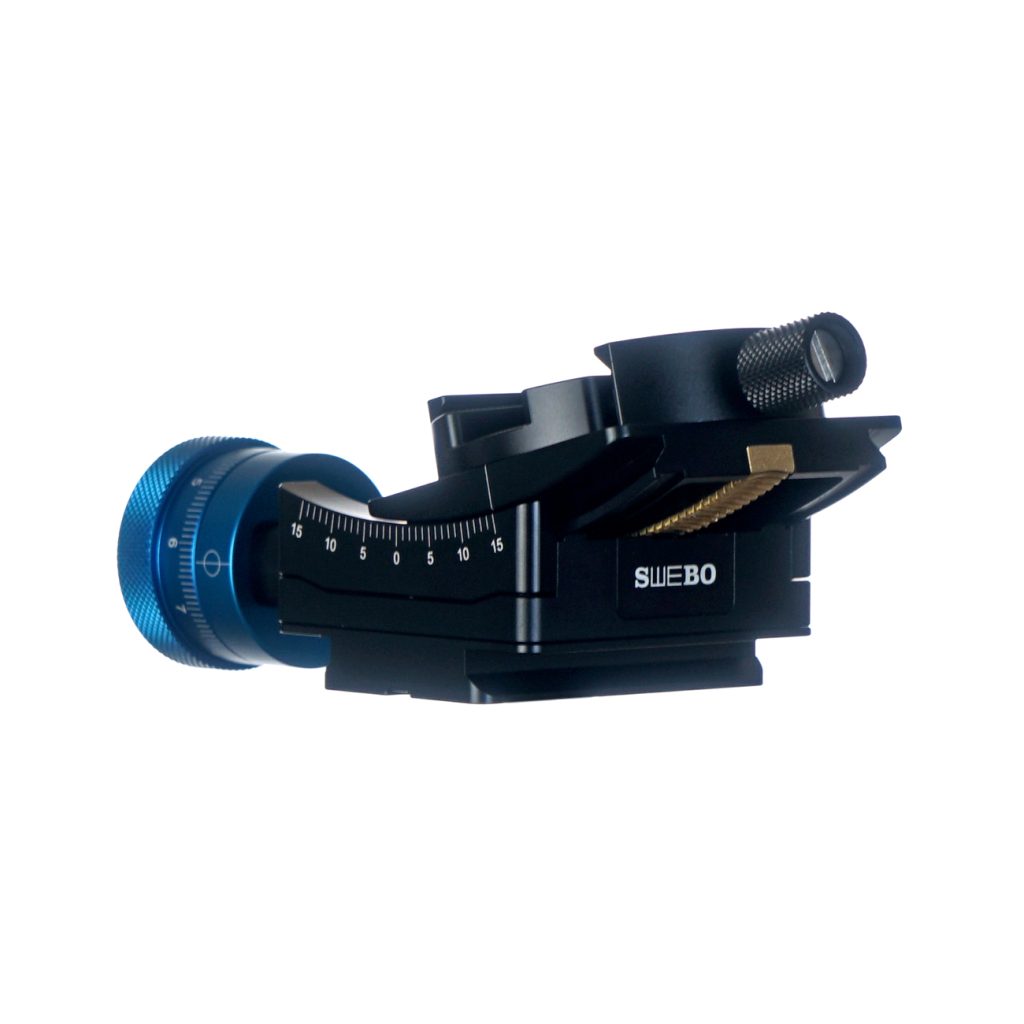

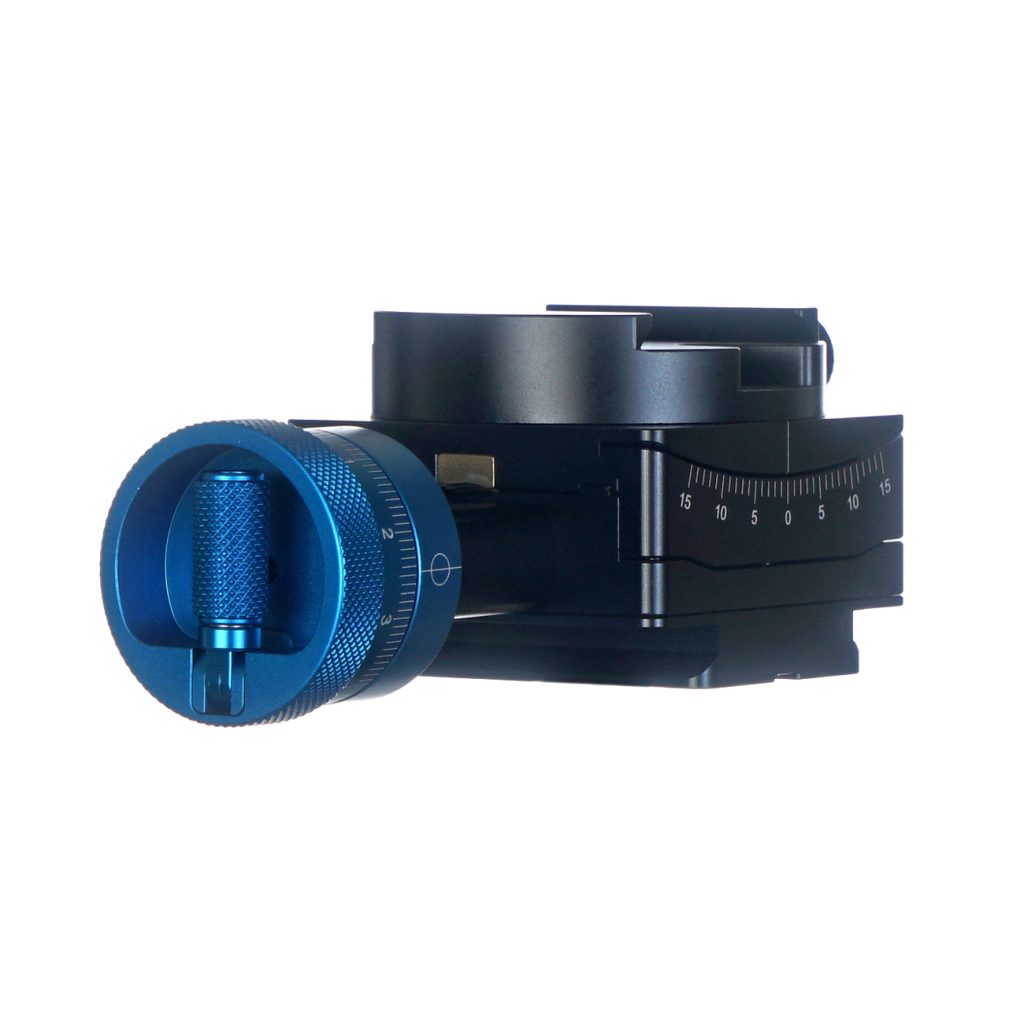

ND1 Enlarged Knob Micrometer Precision Goniometer Stage features precise adjustment in one directional angle,with an accuracy of up to 0.01 degrees.
The adjustment range of ND1 is ±15 degrees. The knob is marked with 100 increments and includes a foldable handle.
The underside of ND1 incorporates a universal quick-release plate structure,equipped with both 3/8″ and 1/4″ screw threads,allowing it to connect to various tripod gimbals.
ND1 does not have horizontal rotation functionality. If horizontal rotation is needed,it can be used in conjunction with the SWEBO panoramic gimbal. Both the top and bottom can be expanded with 360-degree panoramic rotation modules.
The core driving components are copper worm gears,which,compared to simple push-pull structures,provide consistent force and speed when rotating to any angle,resulting in better load capacity and stability.
The top universal quick-release plate clamp is compatible with Yajia-type quick-release plates and comes standard with a complimentary 60mm length quick-release plate.
Weight: 450 g
