A bellows module for the system's larger camera-side interface. It accommodates medium-format mirrorless bodies and L-Mount bodies through their corresponding interchangeable adapters.
Camera compatibility

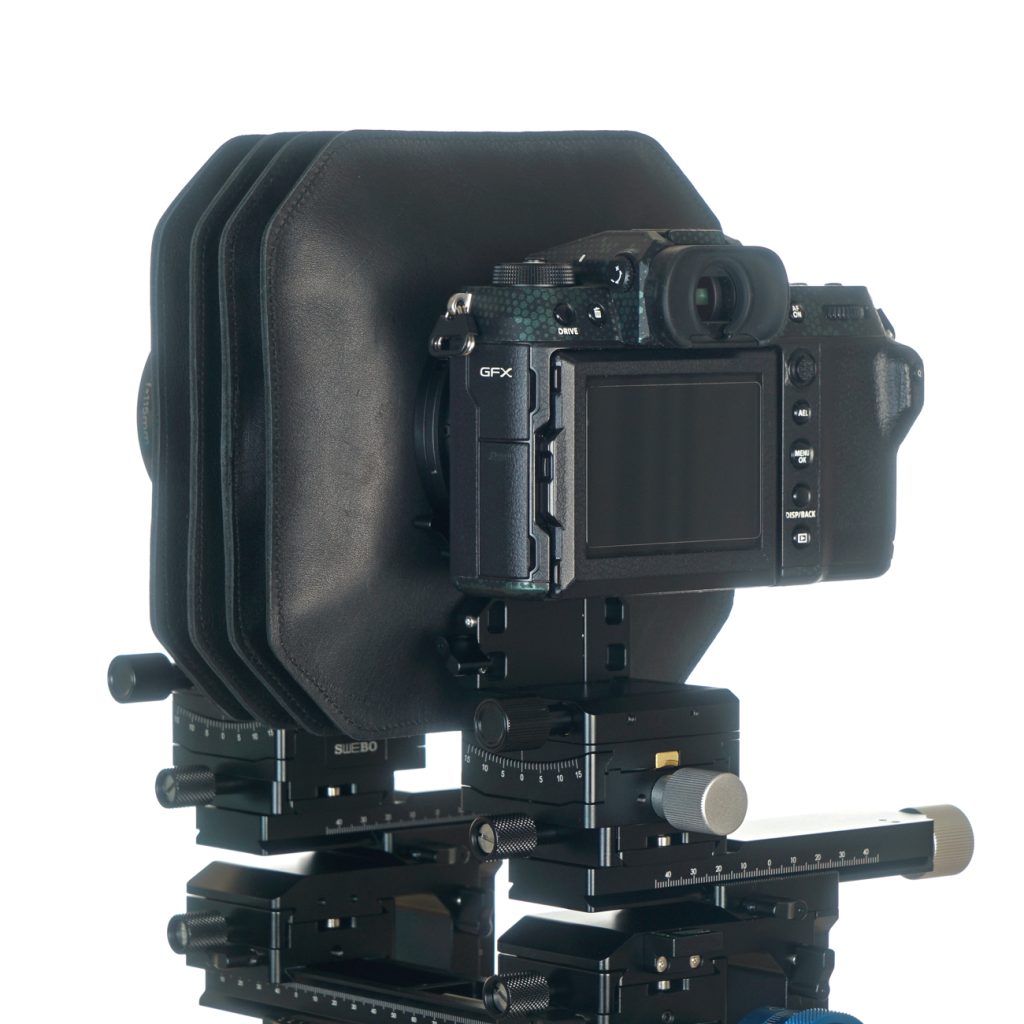

Use the matching Type 2 adapter for Fujifilm GFX (G mount), Hasselblad X System (XCD mount), or supported Panasonic and Leica L-Mount bodies. L-Mount uses Type 2 because of the adapter dimensions, not the sensor format. Hasselblad CFV digital backs use a different rear connection and require Type 3 bellows with the appropriate back adapter.
Working with the camera

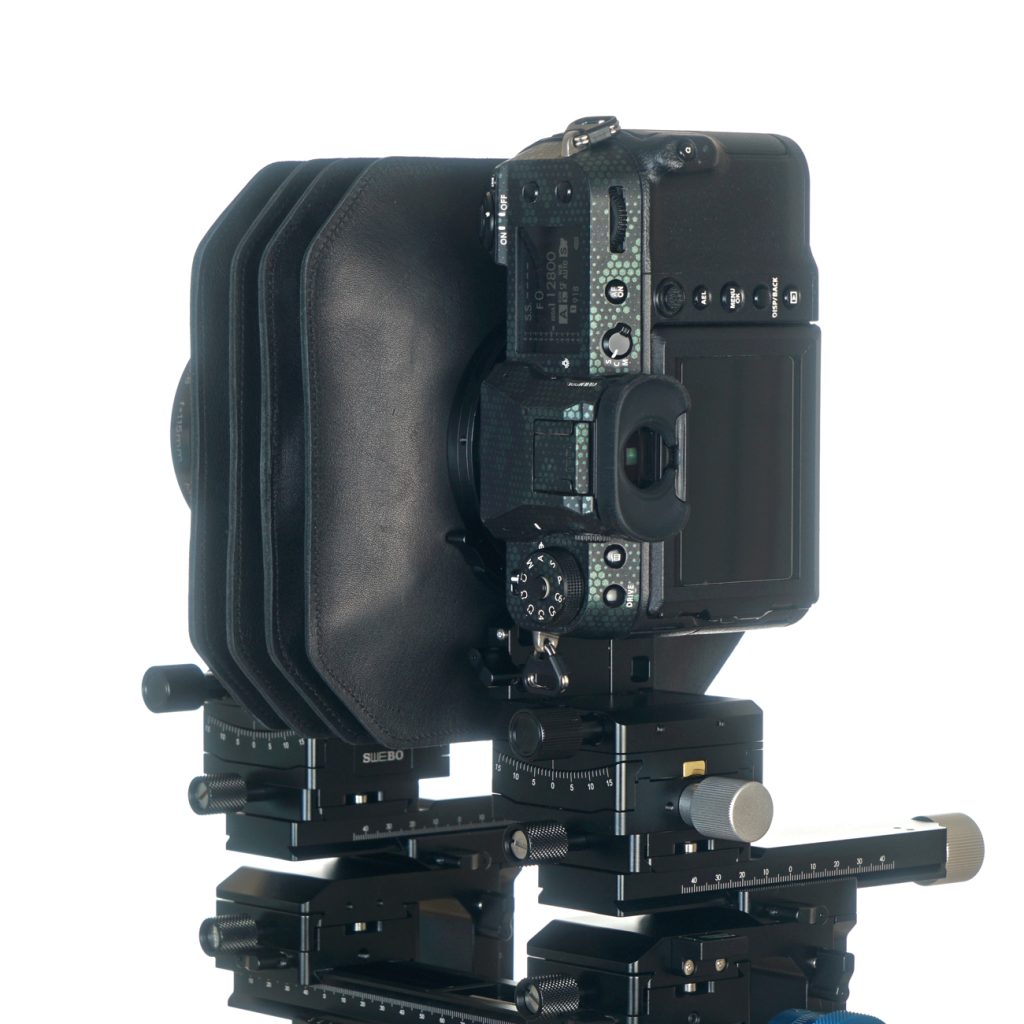

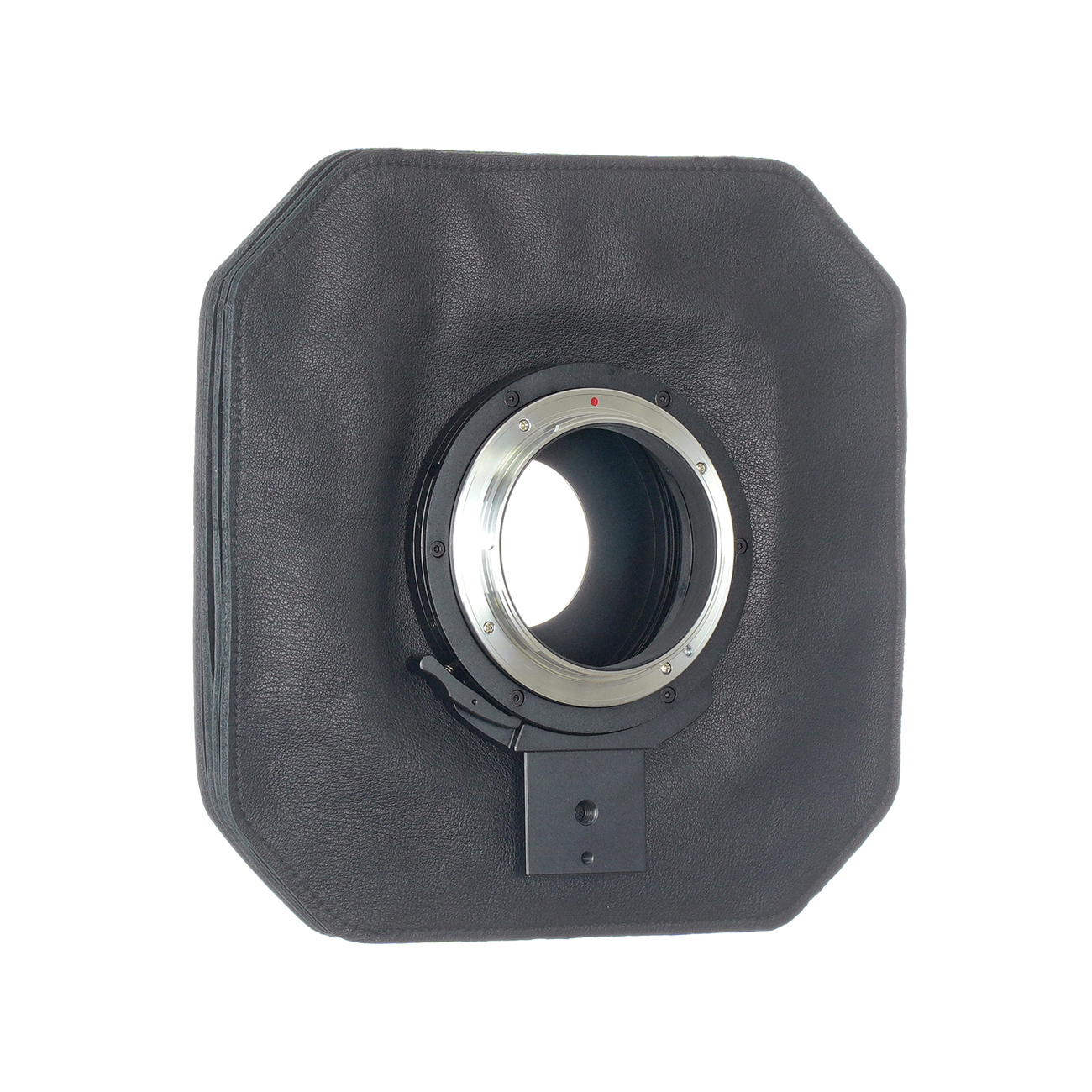

The rear adapter rotates through 90 degrees and locks for landscape or portrait framing. A lever secures the lens board at the front. The bellows attaches to compatible camera standards without tools; earlier screw-fastened configurations require the corresponding attachment arrangement.

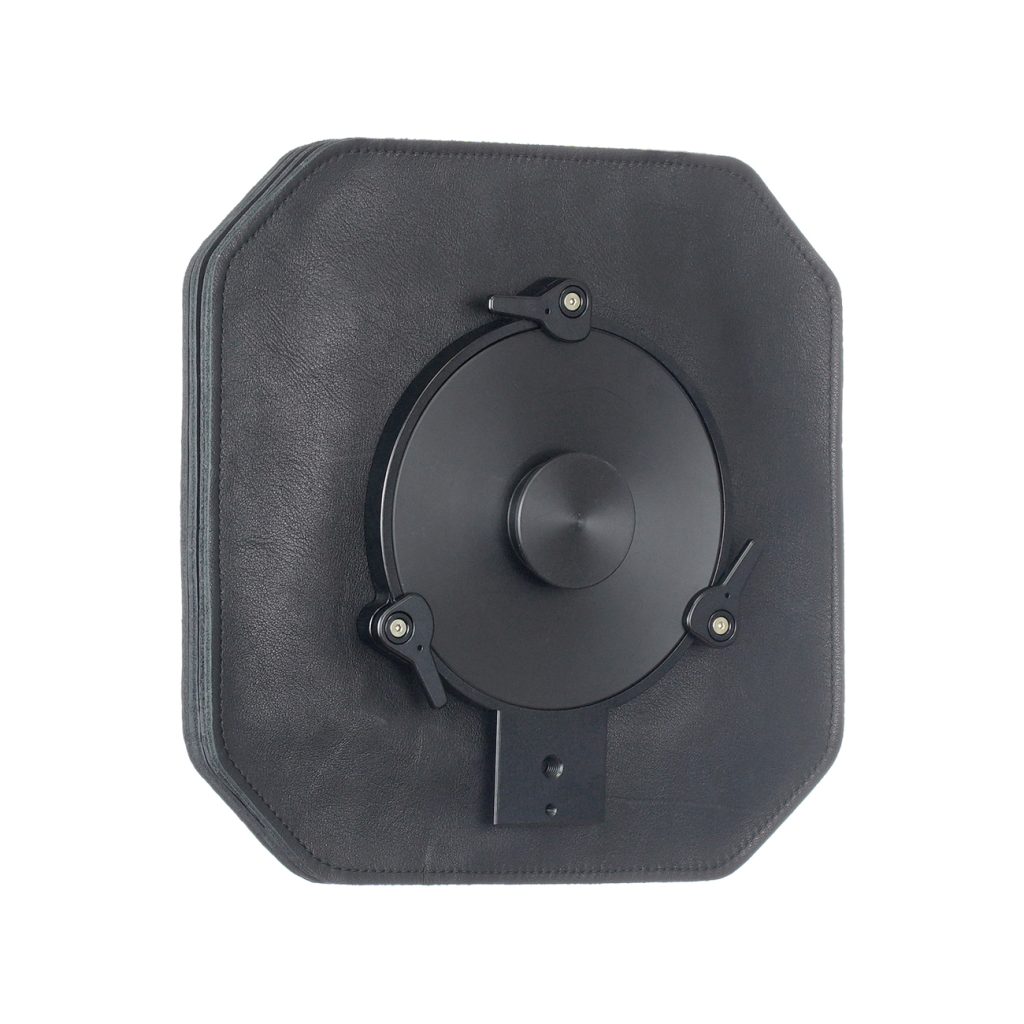

A shared lens interface
The front accepts the system's interchangeable lens boards. Changing the rear bellows type does not require replacing the lens board. Lens compatibility and available movements depend on the selected board, flange distance, mechanical clearance and lens image circle.
Choosing a bellows module
Type 1, Type 2 and Type 3 identify the rear interface, not the bellows length. Cameras using the same type can share a bellows by changing the camera adapter. Moving to a different type requires both the matching bellows and adapter. Select the bellows length to suit the camera's rail configuration.
The system supports a broad range of camera and lens interfaces. Mechanical compatibility does not imply electronic control.
Bellows type guide
| 1. Type 1 | for full-frame and APS-C cameras, excluding L-mount models. |
| 2. Type 2 | for medium-format cameras and L-mount cameras. |
| 3. Type 3 | for digital backs. |
