DF-PH1 connects Phase One digital backs with a matching mounting interface to Type 3 bellows on a MicoMova or SWEBO mini view camera. It provides the camera-side mechanical connection; the selected camera platform determines the available movements.
Compatibility
Phase One backs are available in different mount versions. Check the exact back model and mount for mechanical connection and capture-triggering requirements before assembly.
Bellows and system configuration
Requires Type 3 bellows. The type identifies the rear connection, not bellows length.

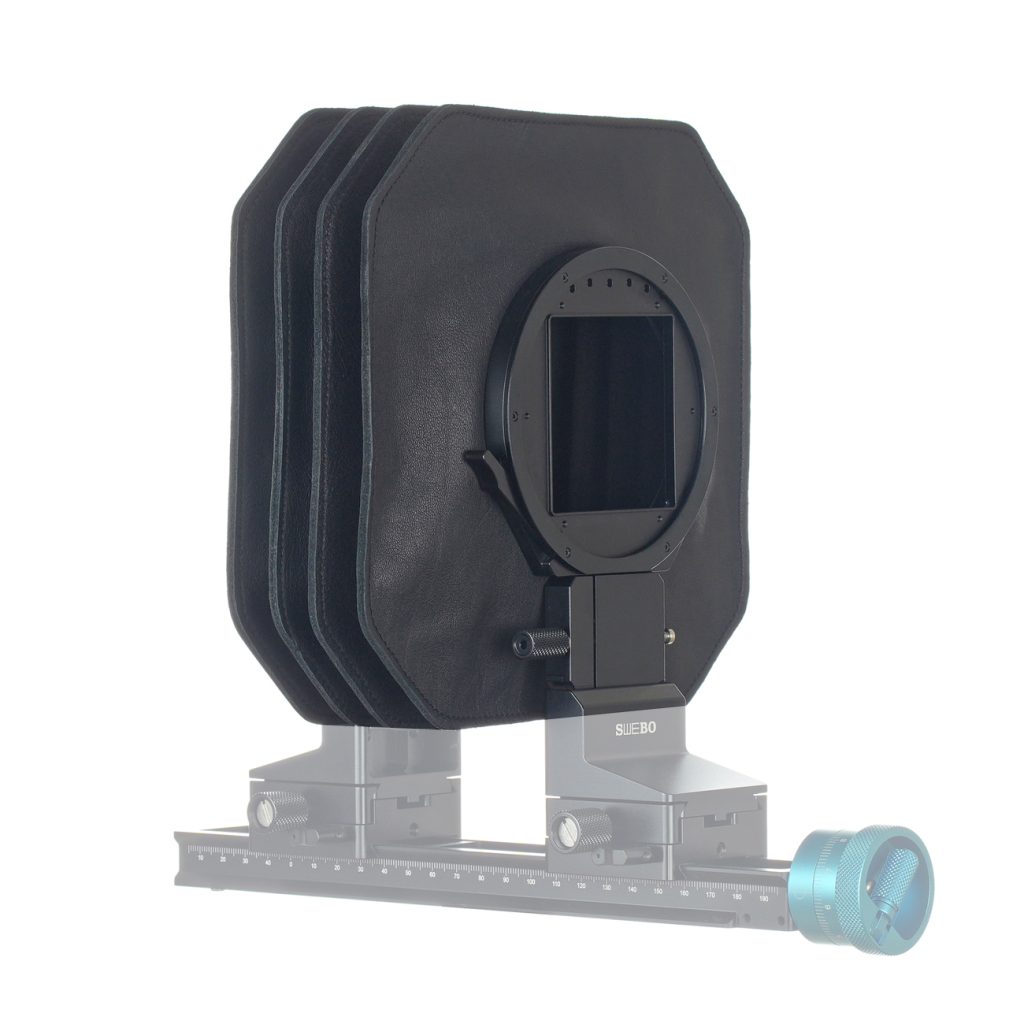

Once mounted, the system's rear rotation and locking mechanism allows 90-degree changes between landscape and portrait orientation.
Changing cameras
Adapters within the same bellows type can share one bellows. Changing to another type requires both the matching bellows and adapter. The front lens-board interface remains common, so existing compatible lens boards can be retained.
Configuration notes

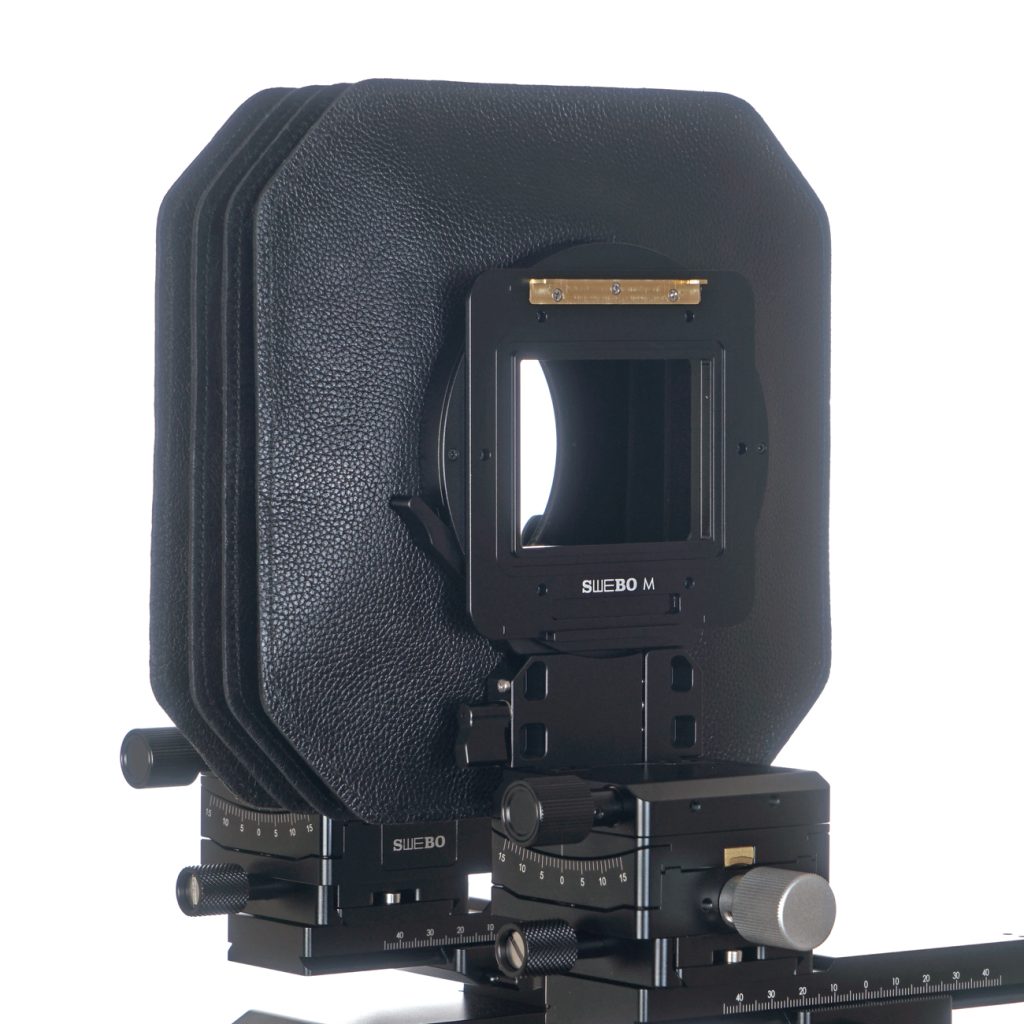

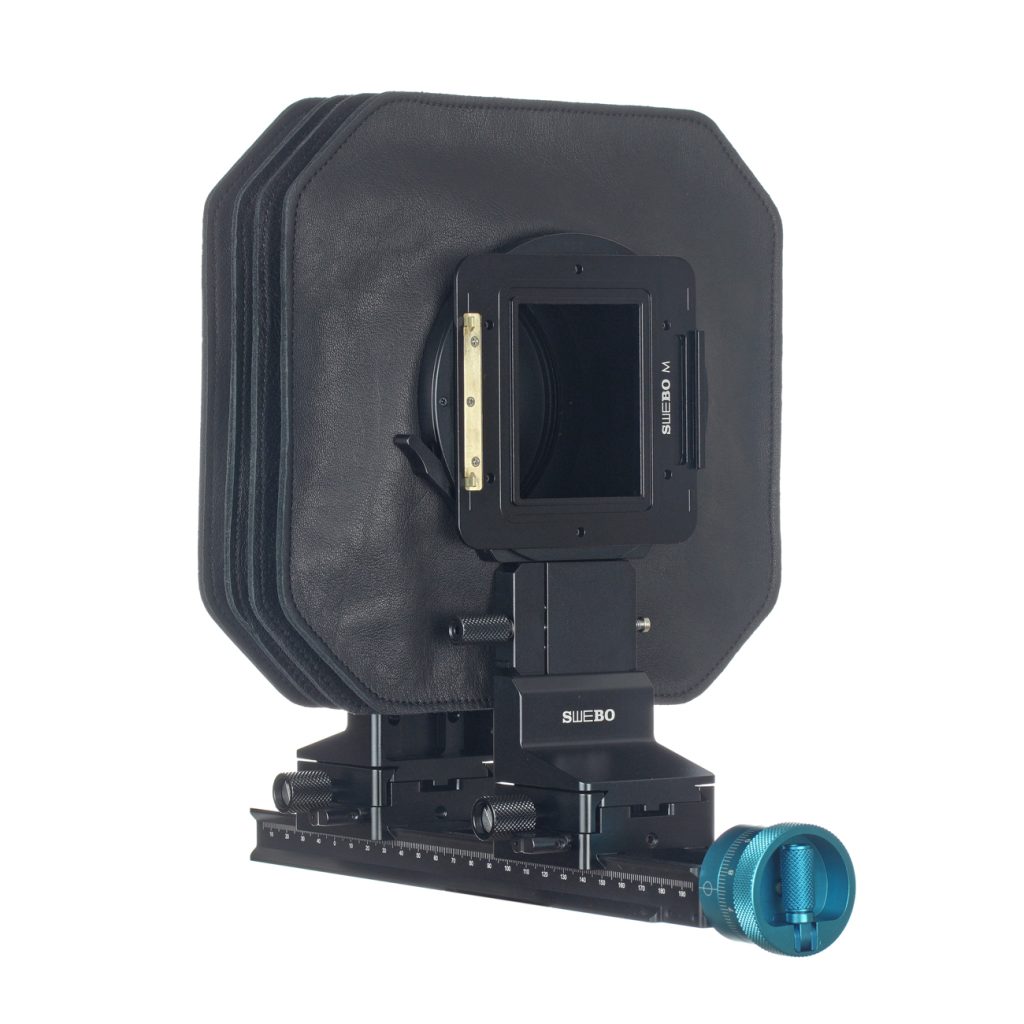

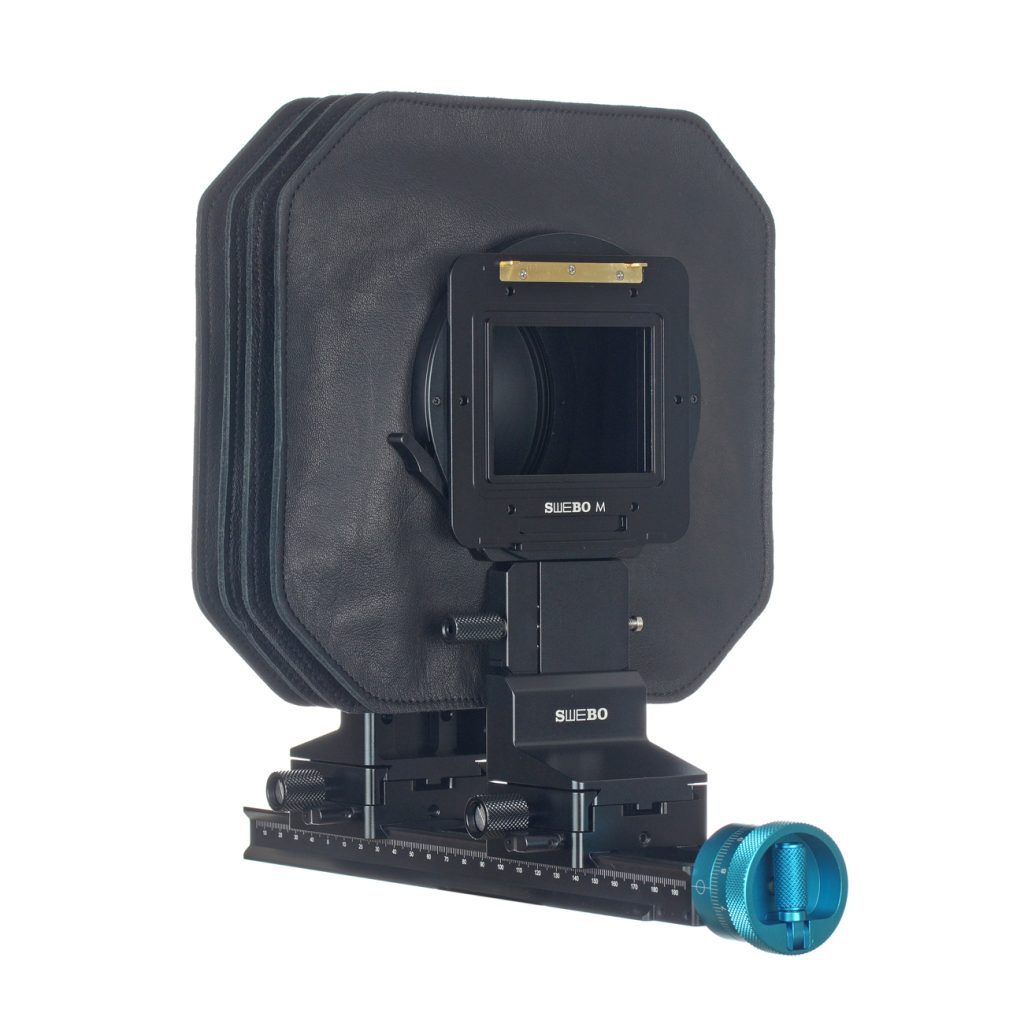

Adapter only. Camera platform, bellows, lens board, lens and camera or back are configured separately. Complete assemblies shown illustrate use.
Mechanical fit does not imply electronic control. Capture triggering, infinity focus and usable movements depend on the camera or back, lens flange distance, rear clearance, image circle and bellows extension.
