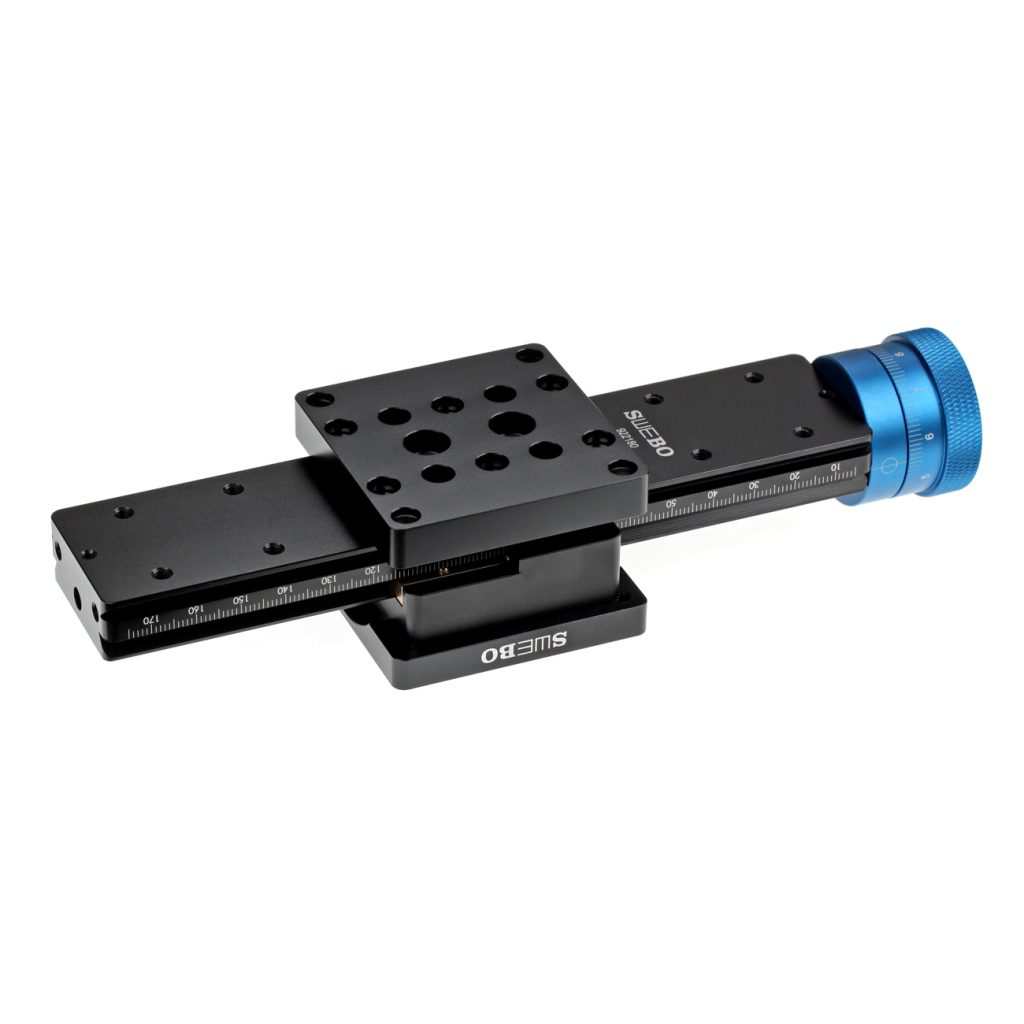

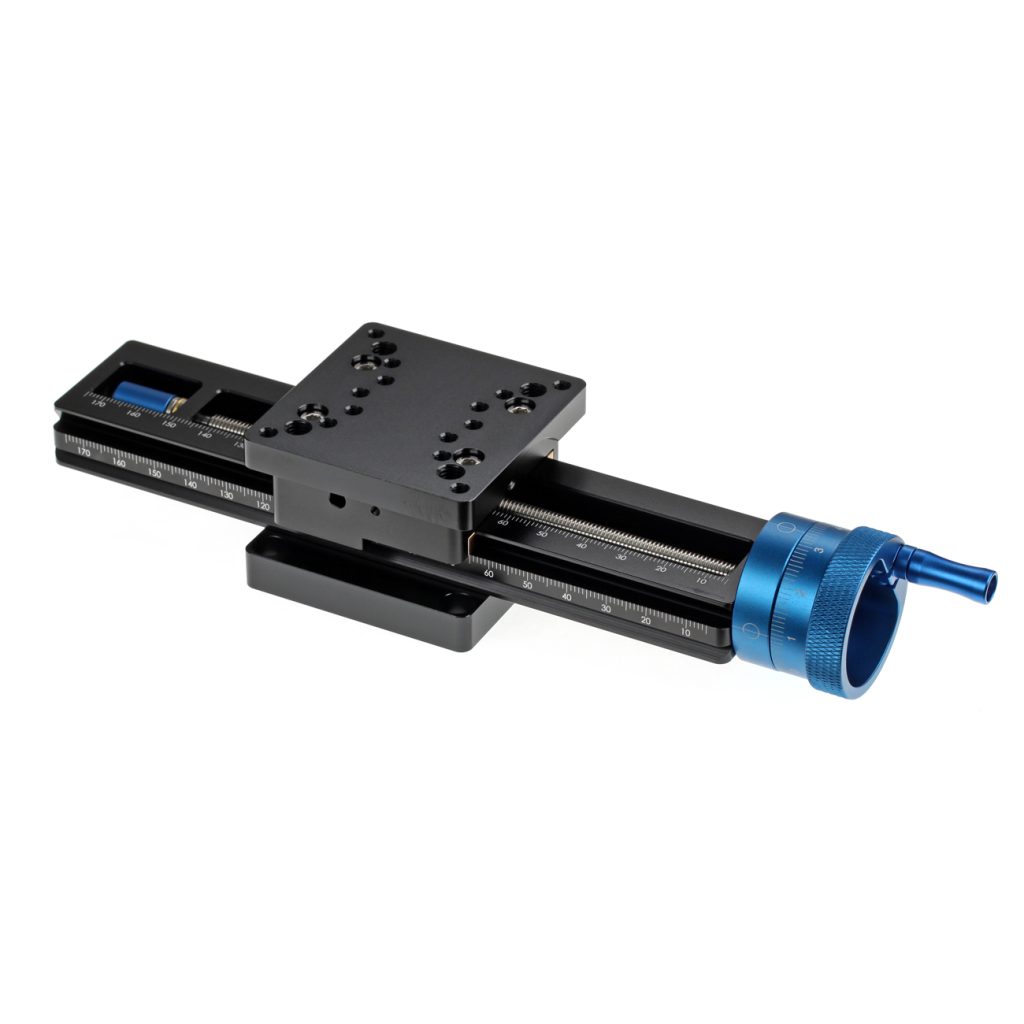

SWEBO M001 Precision Horizontal Linear Stage with Micrometer Knob
A high-precision stage series customized for research institutions and laboratories. Based on the M001 model,it can be configured into a cross XY-axis type,a vertical Z-axis type,and an XYZ three-axis combination. Additionally,it can be used in conjunction with SWEBO’s multi-dimensional angle fine-tuning gimbals.
Exclusive Upgrades for Research Institutions and Laboratories
- Heavy-Duty High-Precision Sliding Rails
- Teflon + Copper Composite Oil-Free Lubrication
- Folding Handle Micrometer Scale Knob
Main Specifications
Weight: 491 grams
Travel: 126 millimeters
Rail Length: 180 millimeters
Precision: 0.01 millimeters
Americas and Japan
Available Globally
