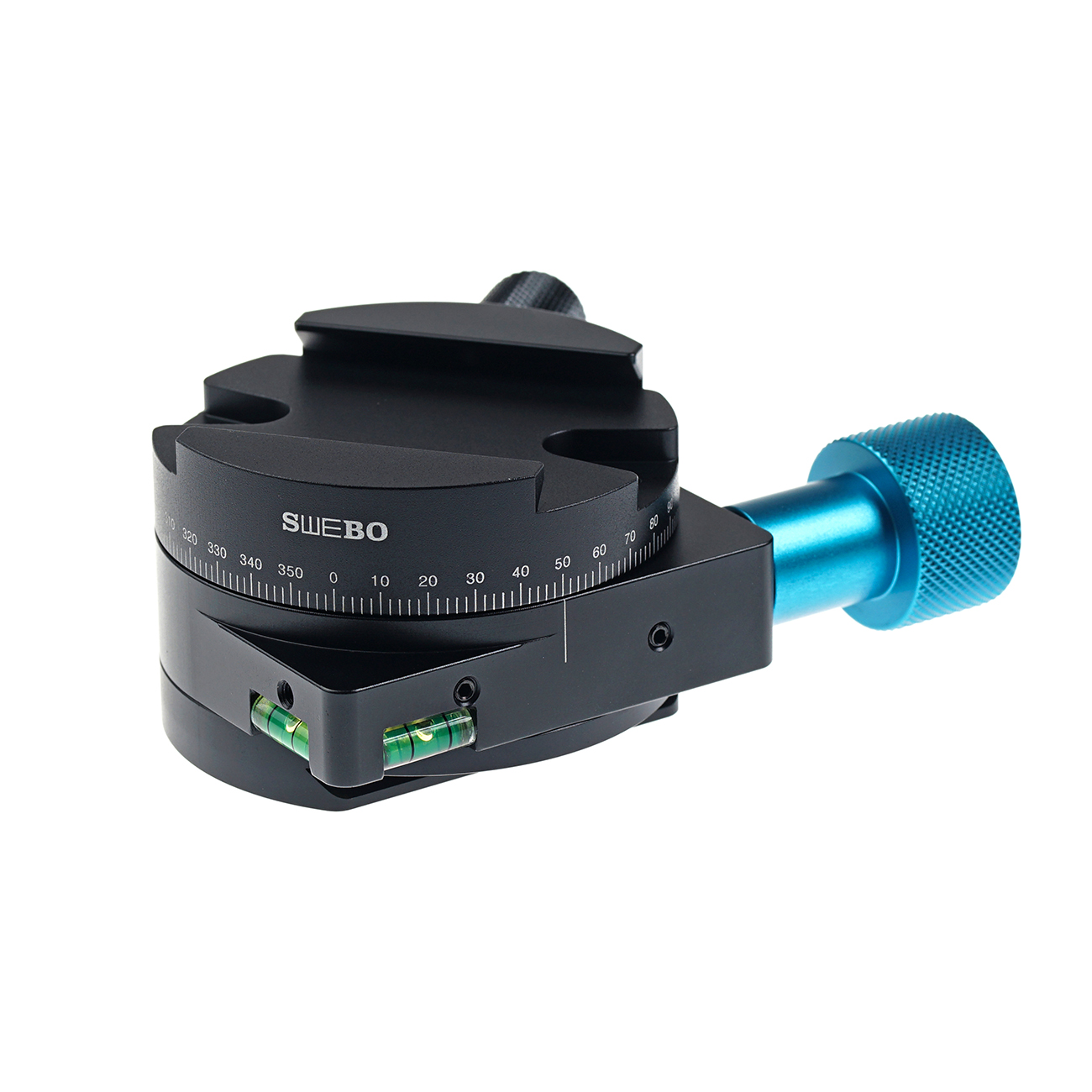

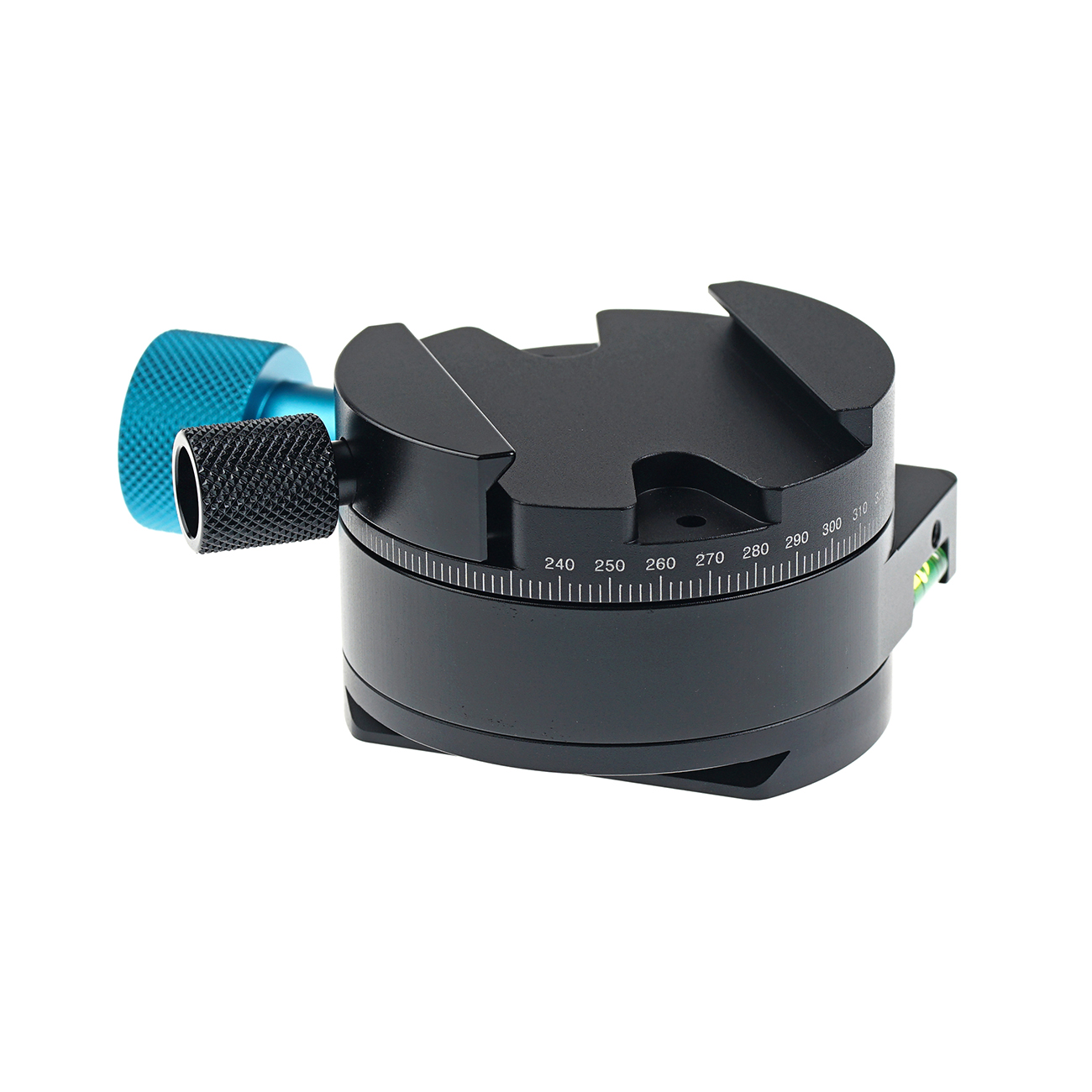

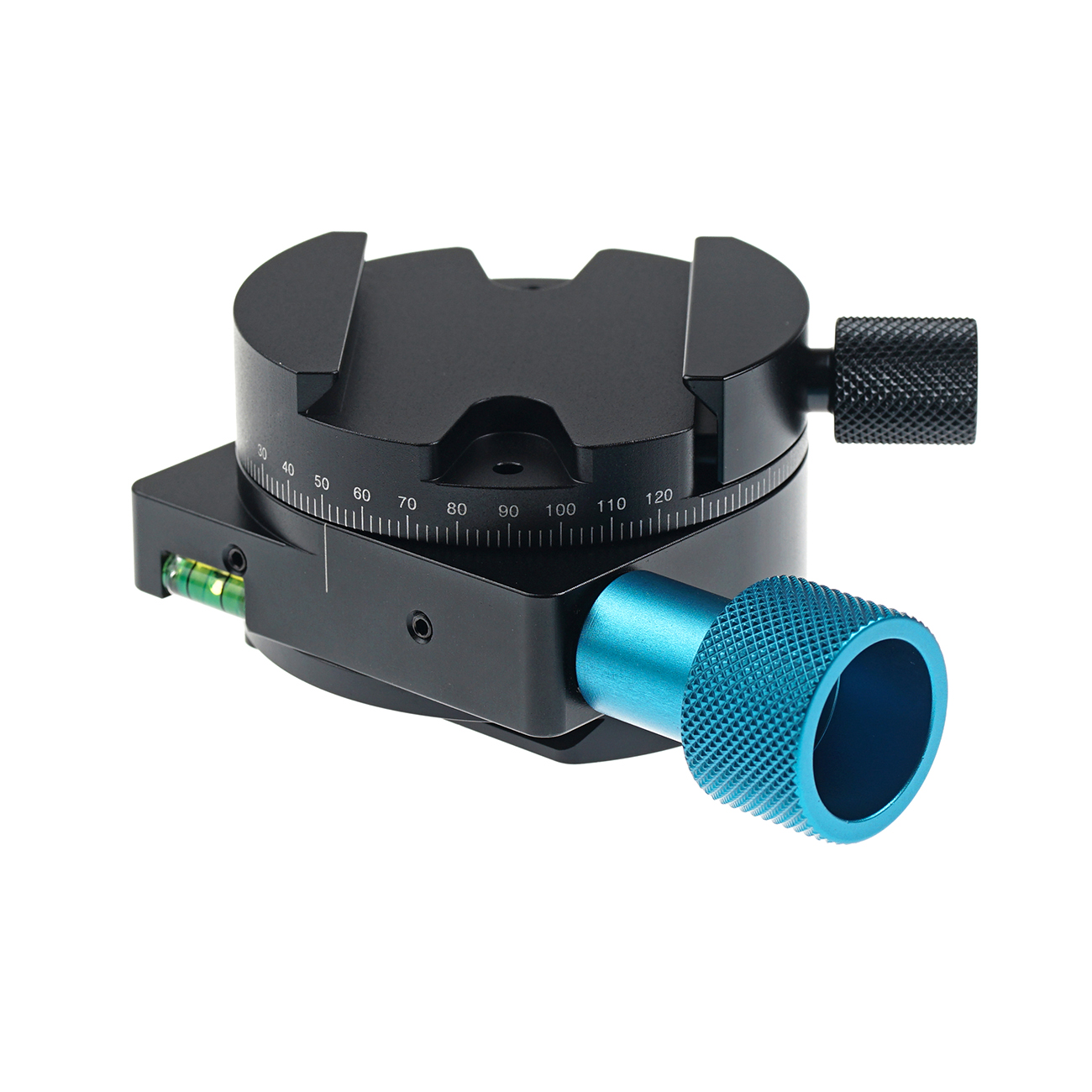

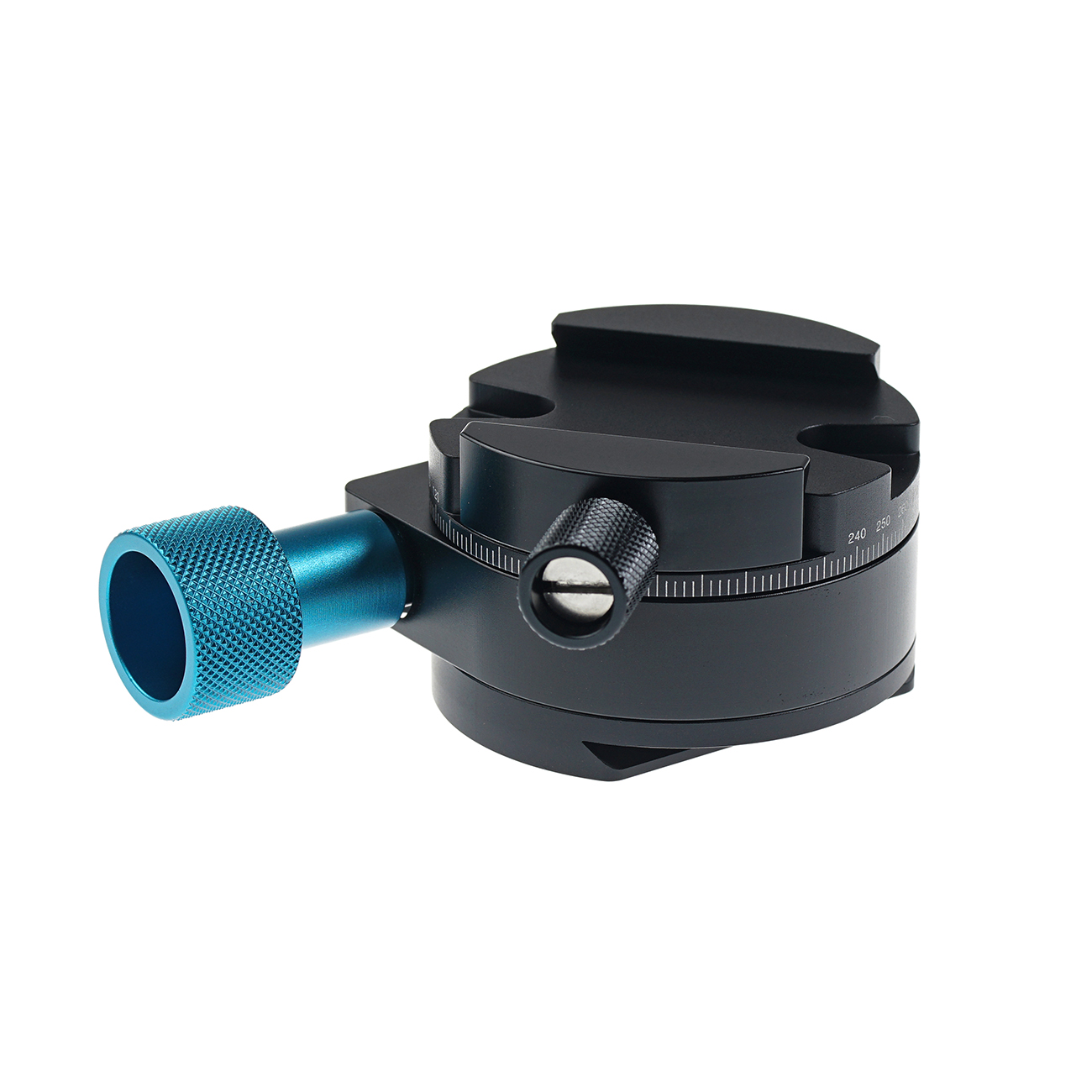

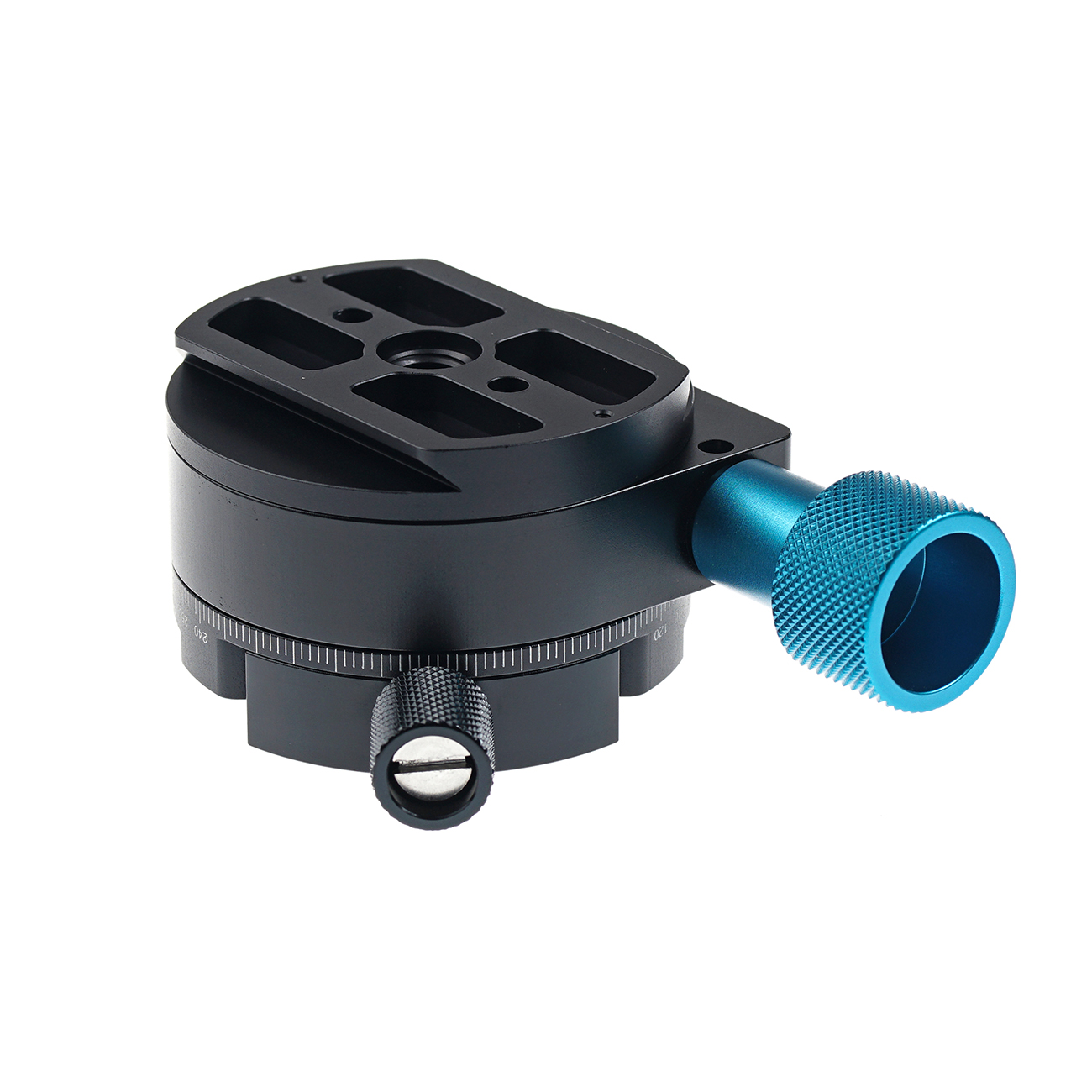

The ND10 is a compact worm-geared panning head for controlled camera rotation. Its geared movement turns continuously through 360° and holds position through the self-locking worm mechanism.
Geared rotation
Turn the control to adjust the camera orientation gradually. The circular scale is marked in 2° increments. These marks are an angular reference, not a measured angular-accuracy specification.
Compact mounting arrangement
An upper Arca-type clamp accepts a compatible camera or lens plate, while the base uses an Arca-type profile. Two bubble levels assist with setup. The 60 mm body diameter excludes the projecting control knob.
Specifications
| Rotation | Continuous 360°, worm geared |
| Scale interval | 2° |
| Body height | 36 mm |
| Body diameter | 60 mm, excluding the knob |
| Weight | 216 g, excluding the quick-release plate |
| Mounting | Arca-type upper clamp and base |
