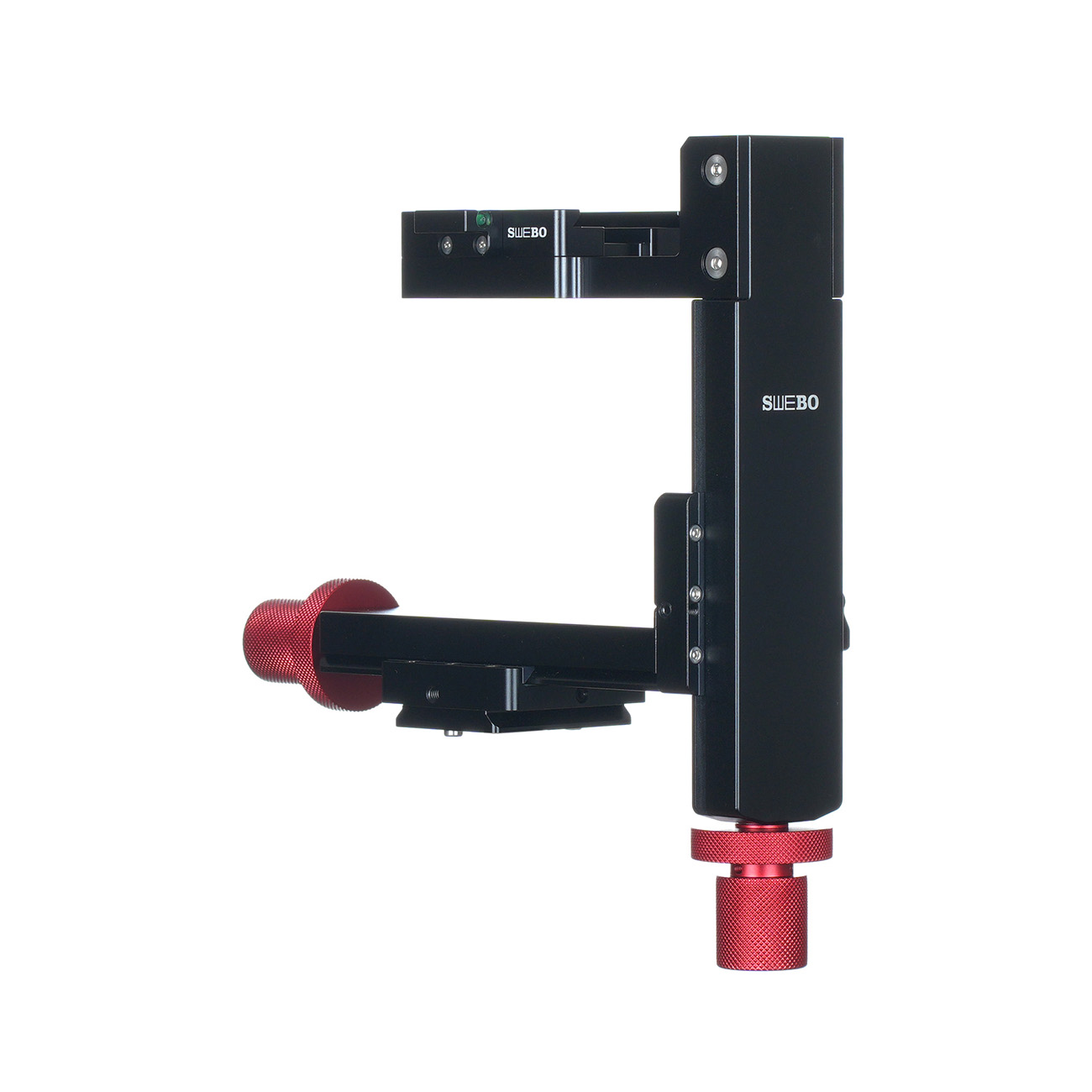

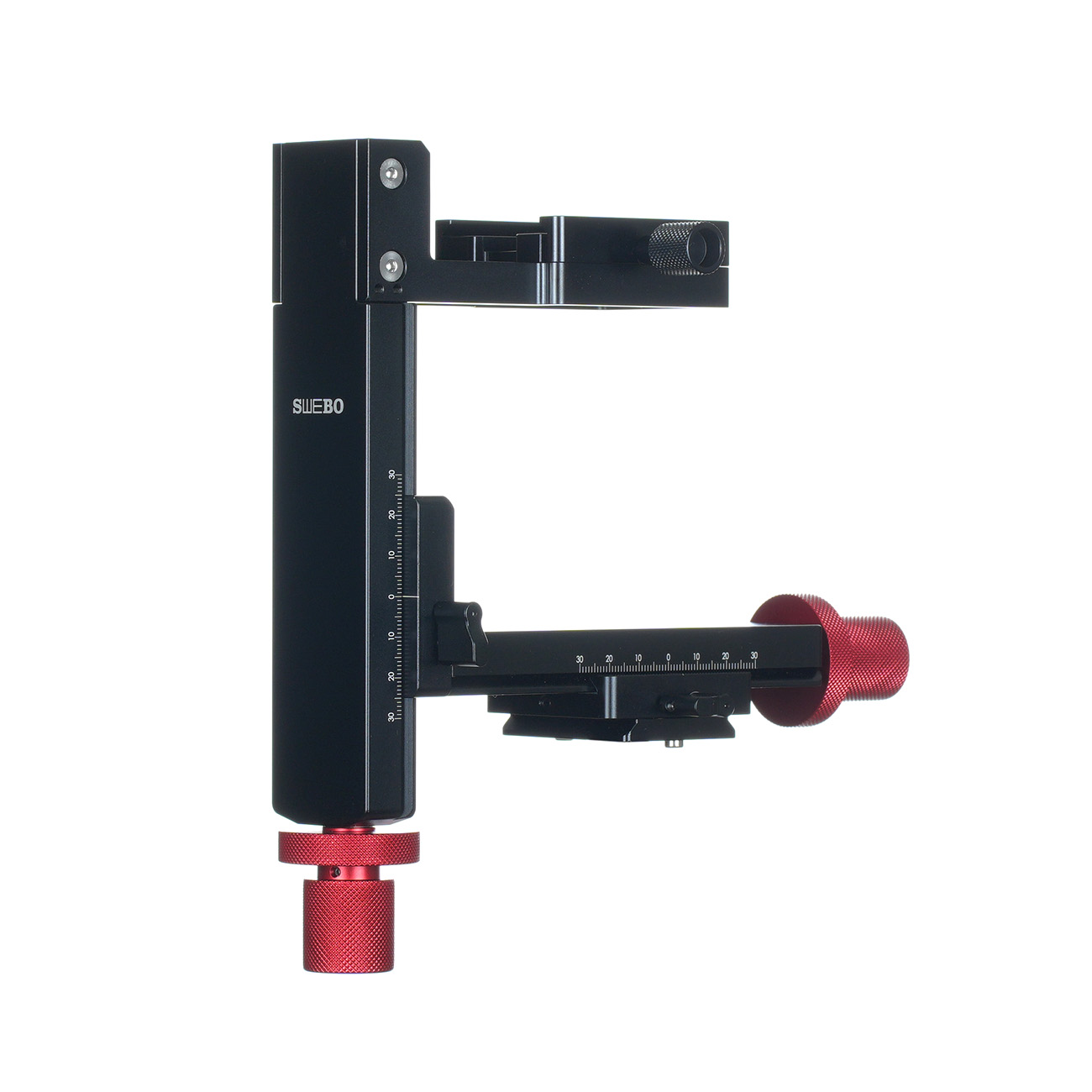

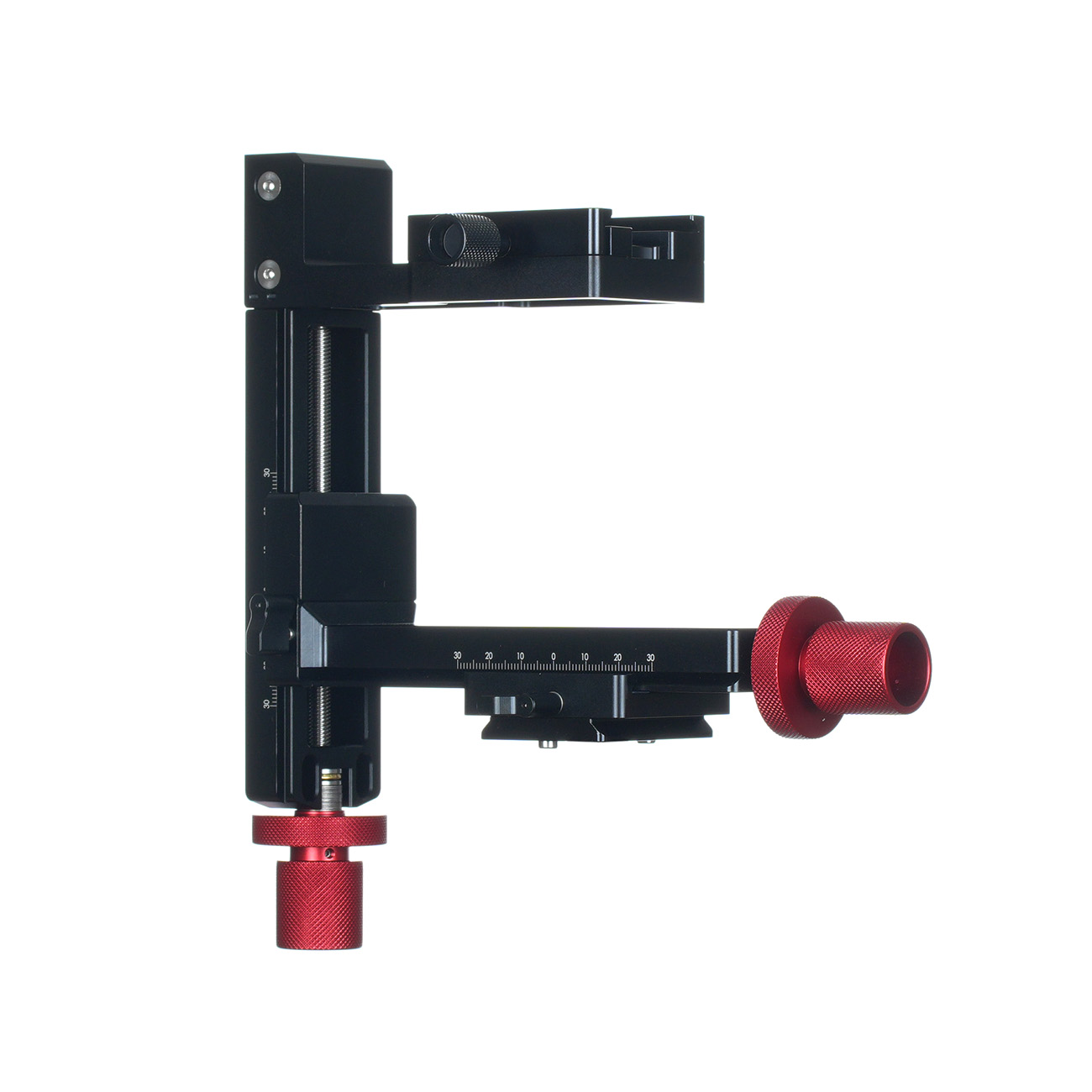

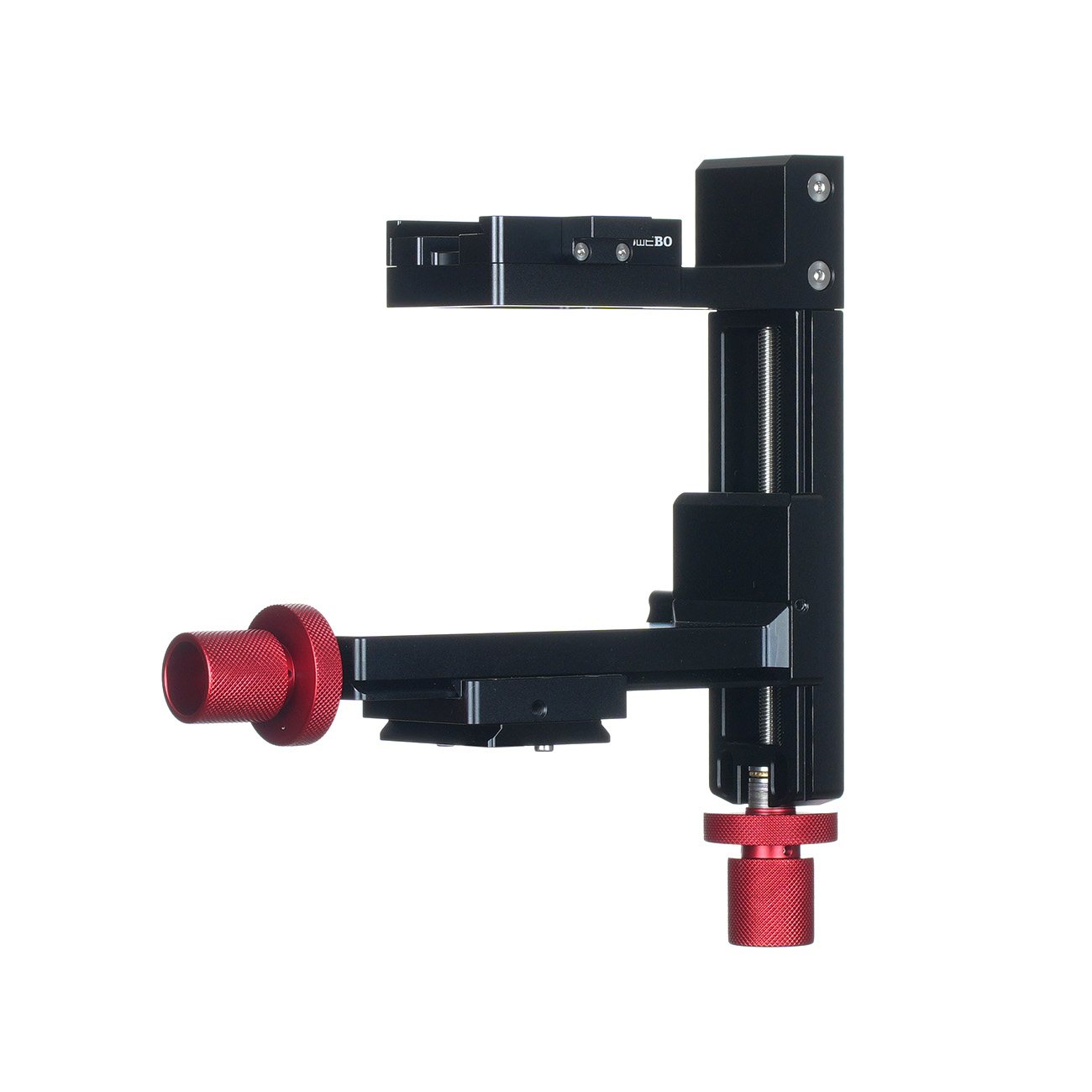

The ND9pro provides independent horizontal and vertical camera movement. It is designed for controlled positioning in macro photography and other close-up setups where both height and lateral position need adjustment.
Two screw-driven axes
Each axis provides 60 mm of travel with a 4 mm screw lead. The dual-diameter controls offer different grip sizes on the same drive ratio; they are not separate coarse and fine mechanisms. The stage is maintenance-free.
Secure the vertical position
Engage the vertical-axis lock after adjustment to hold the selected height, and release it before moving the stage again. The stated load capacity is 5 kg.
Camera and support interfaces

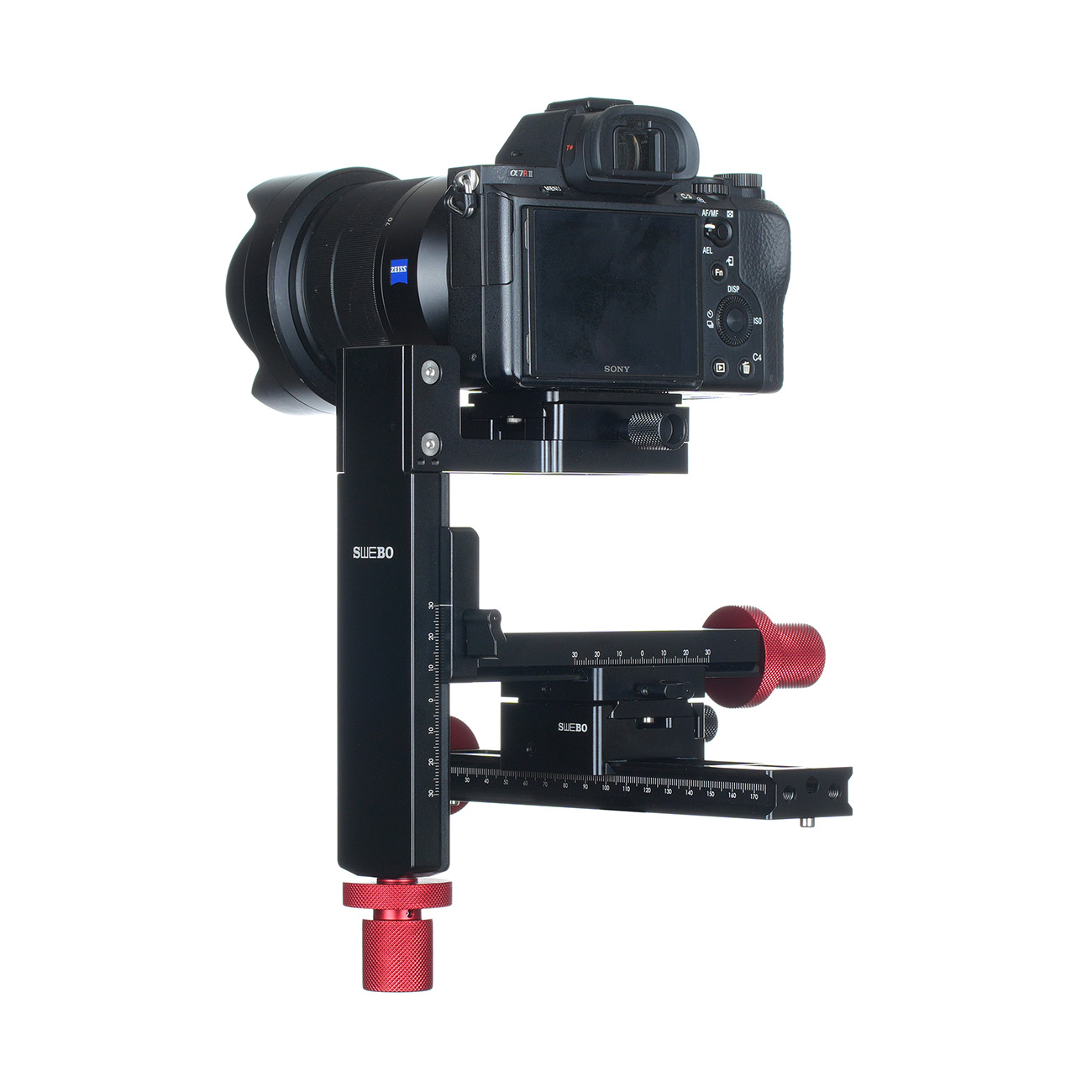

The upper Arca-type clamp can be removed and refitted at 90° to suit the plate orientation. An Arca-type base connects the stage to a compatible support. Positioning, camera operation and any subsequent focus stacking remain manual and separate.
Specifications
| Horizontal / vertical travel | 60 mm / 60 mm |
| Screw lead | 4 mm per revolution |
| Load capacity | 5 kg |
| Weight | 716 g, excluding the quick-release plate |
| Mounting | Arca-type clamp and base |
