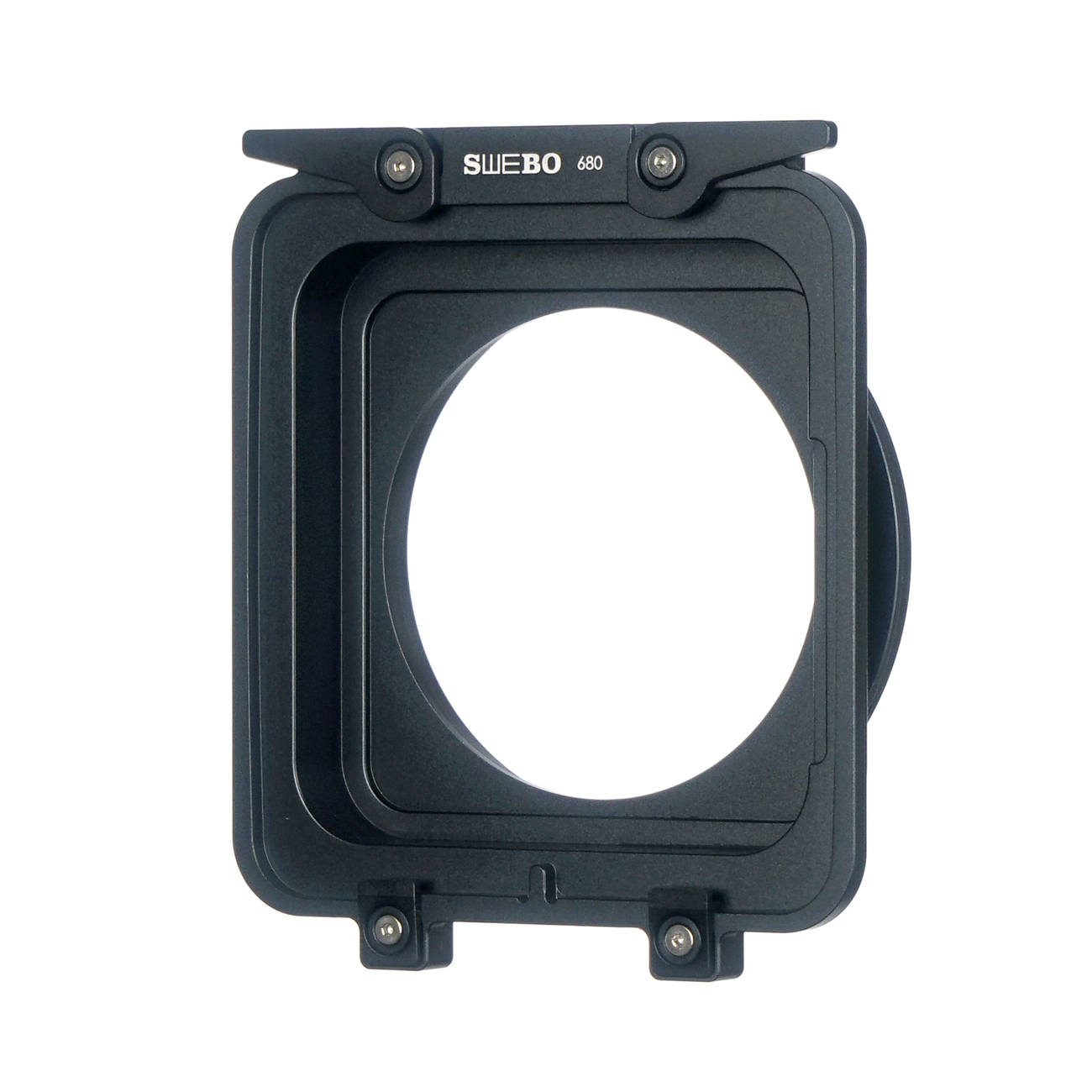

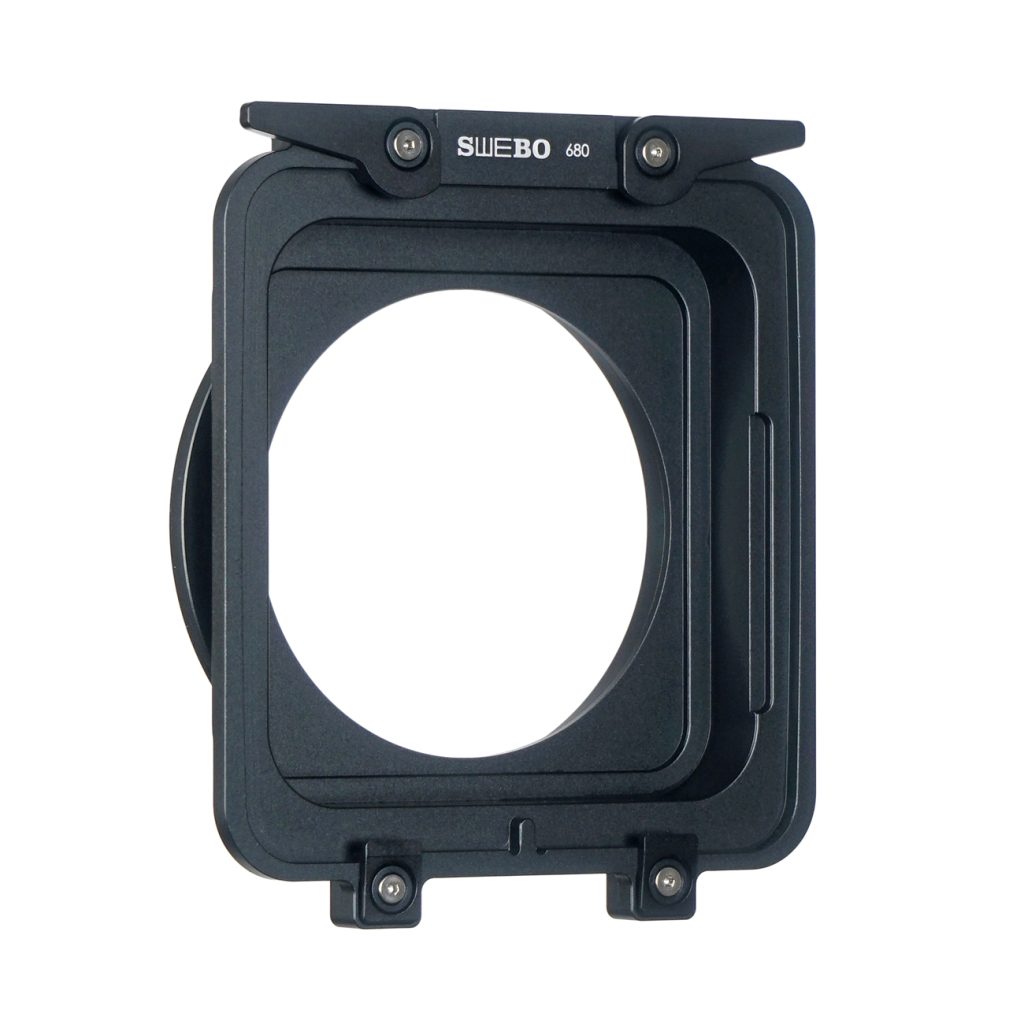

Connects Fujifilm GX680 lens assemblies to the mini view camera system using their dedicated mounting arrangement. The platform supplies focusing and available movements. This is a GX680 lens adapter, not a universal square-board adapter.
Construction and specifications
CNC-machined from a solid aluminium-alloy blank with a lightweight structure. Weight: 127 g. The aperture-preview lever can be used for manual setup; any means of retaining it must leave the mechanism unobstructed. Confirm shutter and capture-triggering arrangements separately.

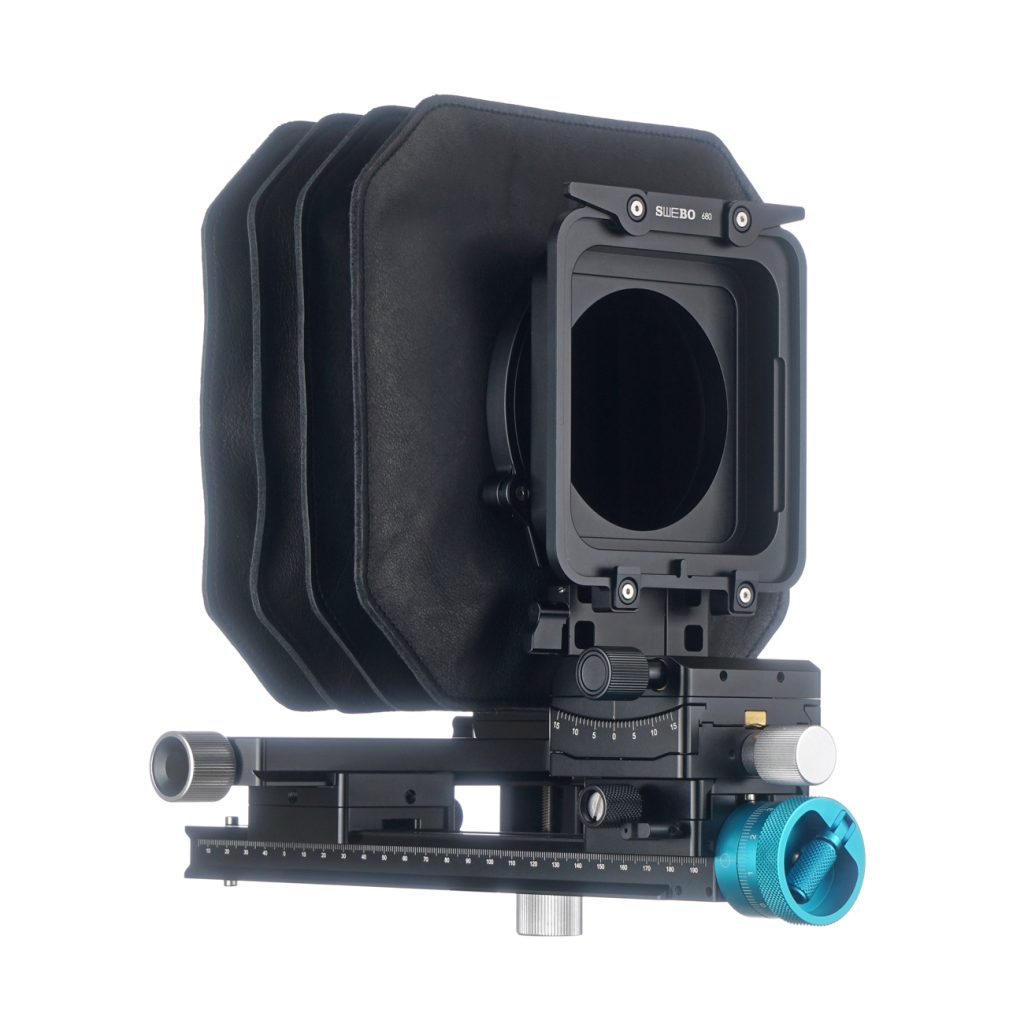

System configuration
Select the rear adapter and Type 1, 2 or 3 bellows for the camera or back; all three share the front board interface.
Configuration notes

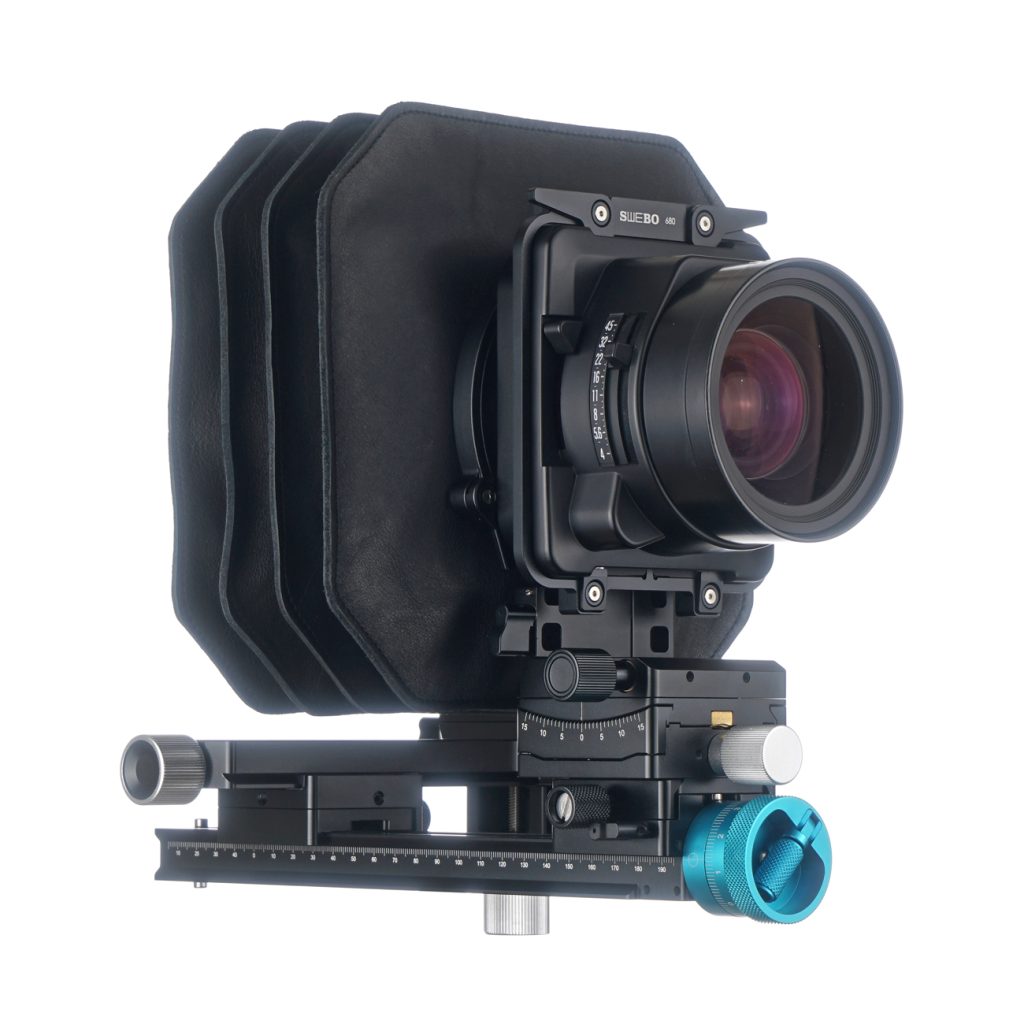

Lens-side accessory only; illustrated lenses, shutters, camera platforms, bellows and cameras/backs are not included. Check retention, aperture/shutter operation, clearance, image circle and focusing range for the assembly. Movements come from the platform; mechanical mounting does not imply electronic control.
