DF-V66 connects Hasselblad CFV digital backs and compatible film backs with the V-system interface to Type 3 bellows on a MicoMova or SWEBO mini view camera. It provides the camera-side mechanical connection; the selected camera platform determines the available movements.
Compatibility
Connects the back, not a Hasselblad X-system body; the latter requires S2130 and Type 2 bellows. Configure capture triggering for the specific back.
Bellows and system configuration
Requires Type 3 bellows. The type identifies the rear connection, not bellows length.

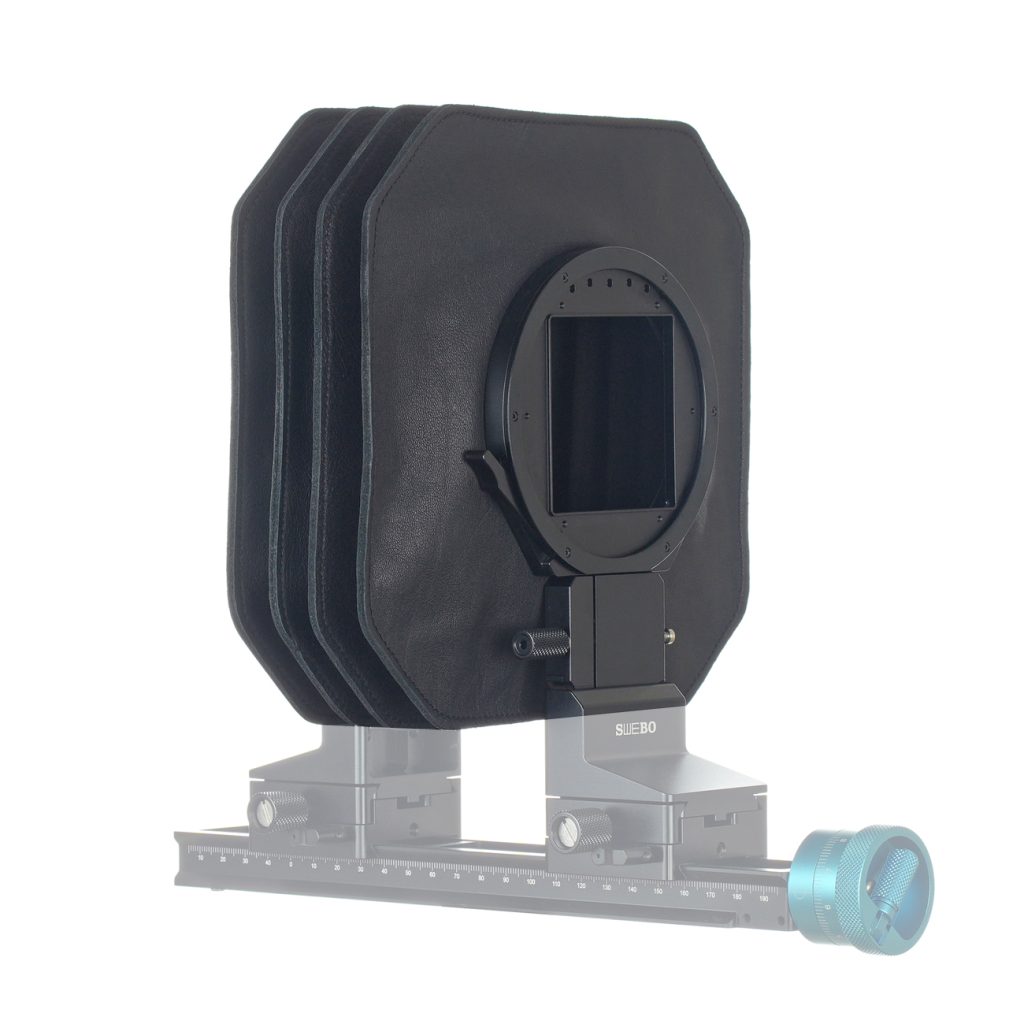

Once mounted, the system's rear rotation and locking mechanism allows 90-degree changes between landscape and portrait orientation.
Changing cameras
Adapters within the same bellows type can share one bellows. Changing to another type requires both the matching bellows and adapter. The front lens-board interface remains common, so existing compatible lens boards can be retained.
Configuration notes

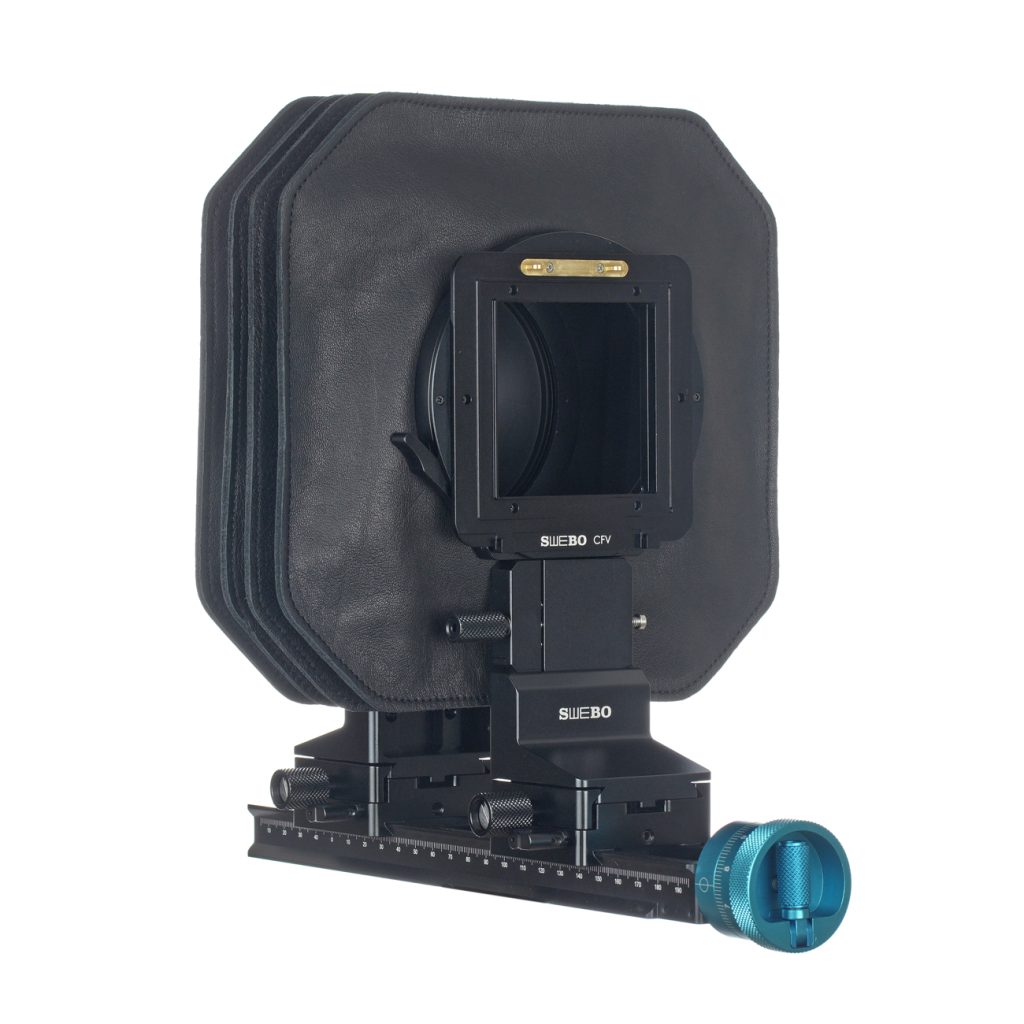

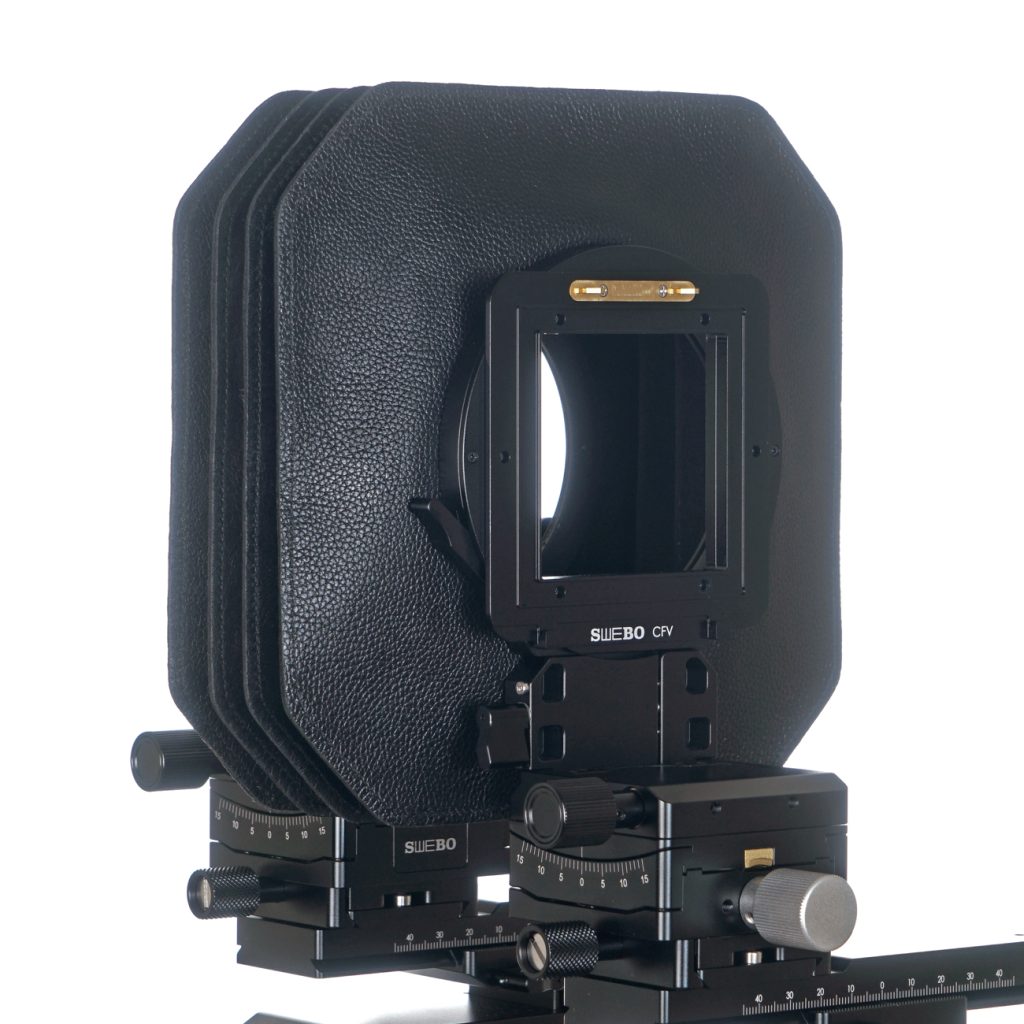

Adapter only. Camera platform, bellows, lens board, lens and camera or back are configured separately. Complete assemblies shown illustrate use.
Mechanical fit does not imply electronic control. Capture triggering, infinity focus and usable movements depend on the camera or back, lens flange distance, rear clearance, image circle and bellows extension.
